Office
Automation

Cosmicnode's Occupancy and Daylight harvesting uses the photo sensor to measure the amount of light intensity both from natural and artificial light sources in the environment. The closed Ioop algorithm, uses measured light level to adjust for expected LUX output.

The Daylight harvesting feature can save an additional 5% to 20% of energy consumption in buildings.

Warehouse
Automation

Cosmicnode’s Occupancy sensing provides multi-level lighting controls. Based on occupancy, the luminaries will turn ON or dim. When the space is vacant, lights will dim and then go OFF, after the pre-defined stand-by time. This results in 30% to 40% energy savings.

This is addressed using PIR or high frequency microwave sensors.

marsleeva

KEY SOLUTION HIGHLIGHTS

We Develop Custom Solutions for Our Customers

Light Scheduling

Set up schedules of operation for the lighting systems so that energy savings can be realized when the building or spaces in the building are unoccupied. This reduces lamp runtime and power output resulting in energy savings, extended lamp life, and reduced maintenance cycle time.

Sensor Controls

Get near real-time view of critical parameters like PIR, Occupancy, Temperature, Humidity, Co2 and other sensors.

Predictive Controls

Via the closed loop algorithms and based on zone demand, the set point for various lighting, heating, and cooling sources will change according to demand from the zones.

Energy Use Monitoring

Monitor energy usage in real-time across the building in different zones. Sending alarms via email to alert building managers or technicians of developing problems and system failures year.

Integration with BMS

Integration with other control systems at the hardware and software levels. Support Modbus over TCP/IP or R$485. Multiple loT protocols eg. HTTPS, MQTT, etc.

marsleeva

Building Automation

Cosmicnode Product Ecosystem
for Smart Buildings

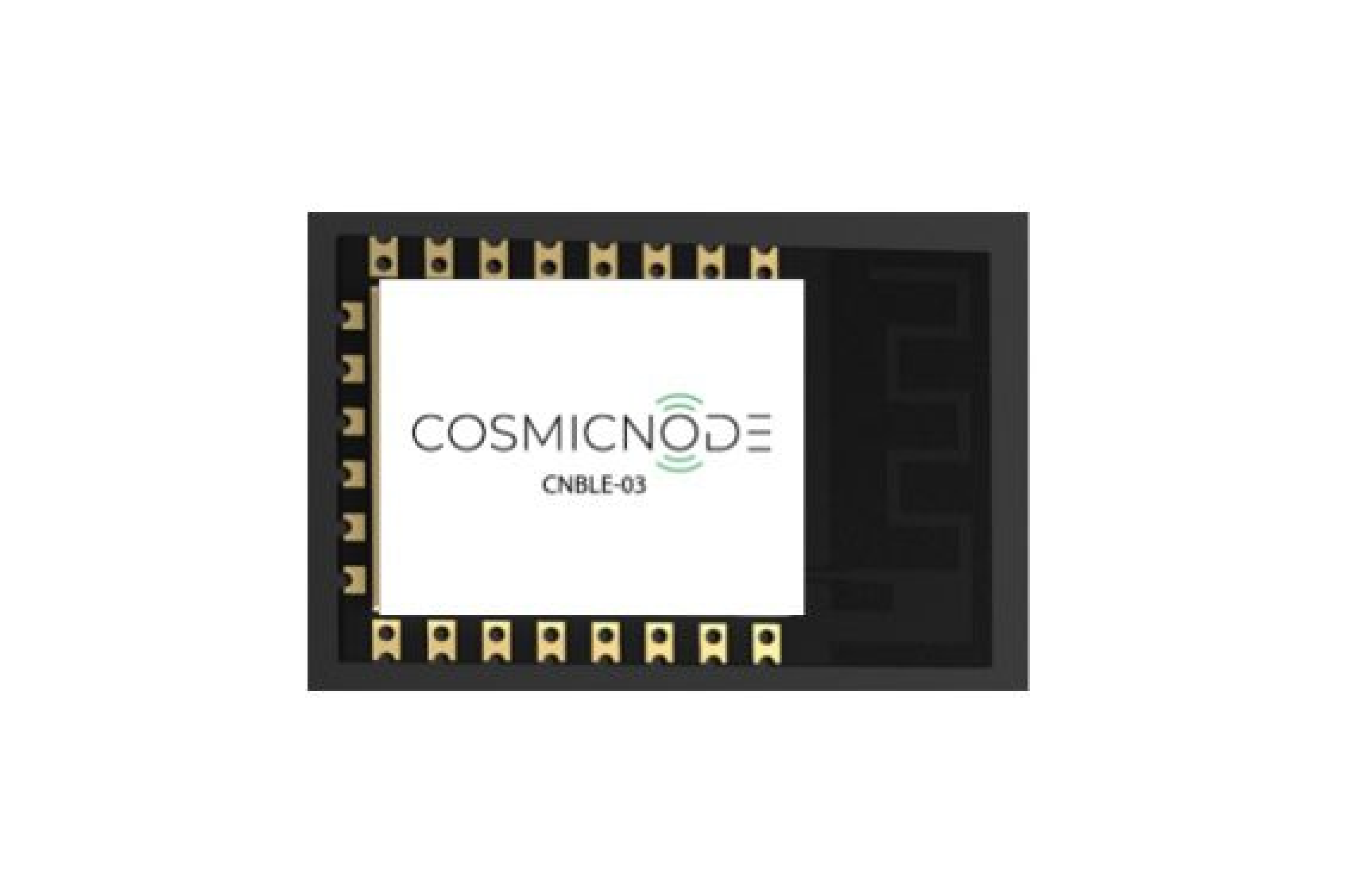

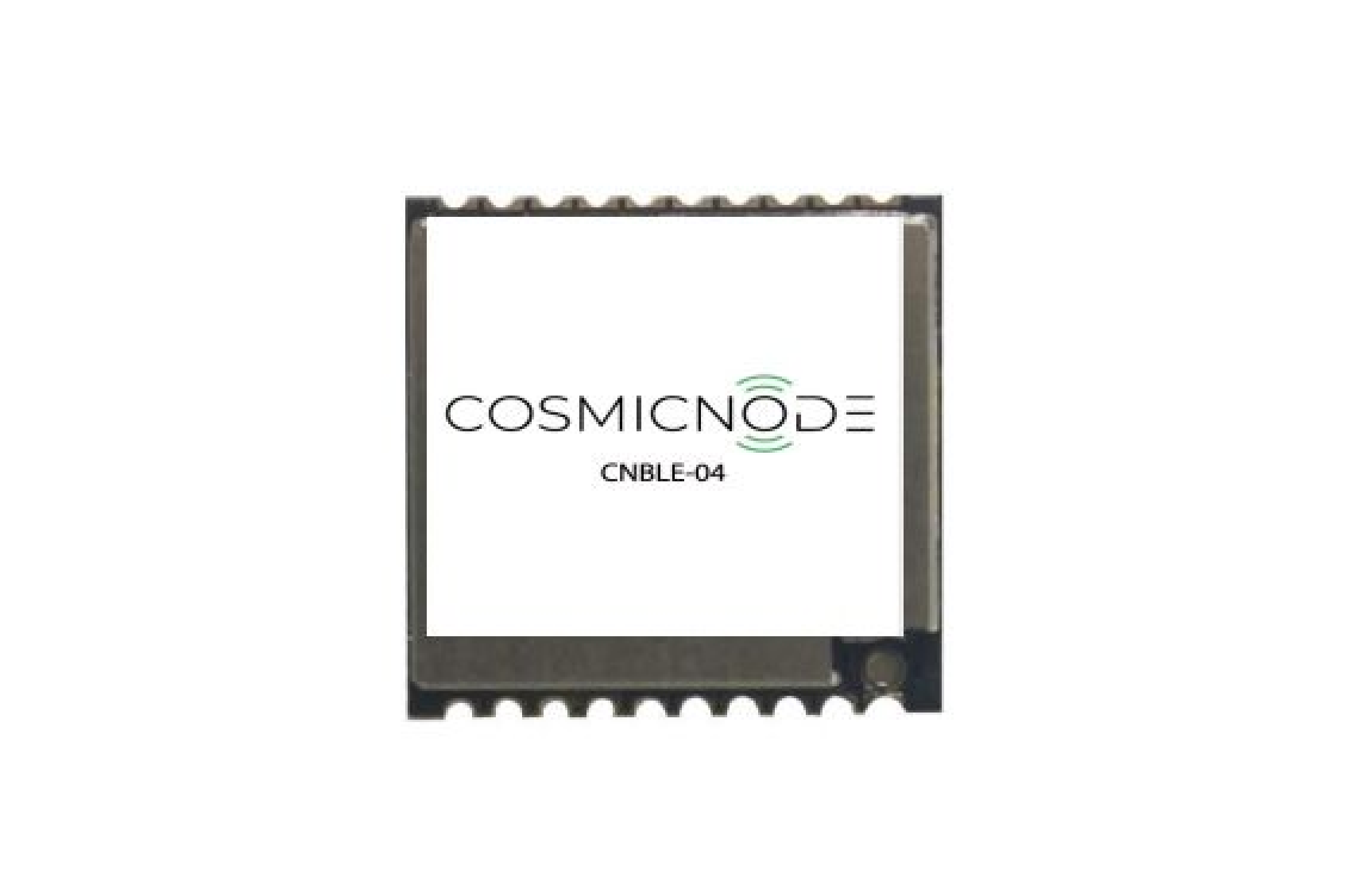

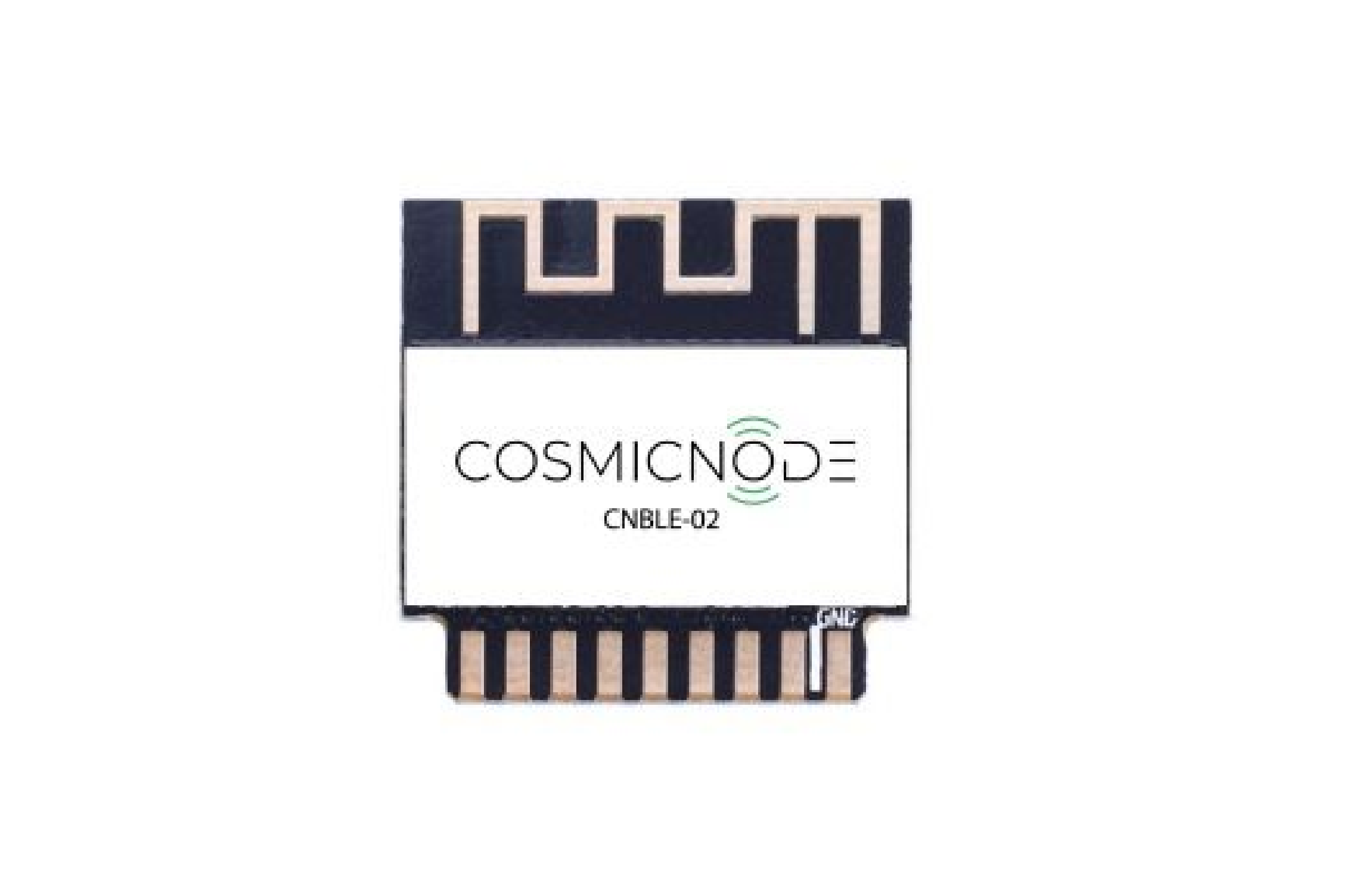

CNBLE Module

CNBLE-02/03/04 CNMesh BLE Module

  • The CNLE-02/03/04 is a Bluetooth module based on the TLSR8250F512 chip and is compatible with BT 5.0 low-power CNMesh.
  • This module supports the Bluetooth Mesh as well as peer-to-peer communication.
  • It is mainly used in intelligent light control, which can meet the requirements of low power consumption, low latency, and short-range wireless data communication.
  • Smooth, harmonized multi-channel (up to 6) simultaneous dimming.

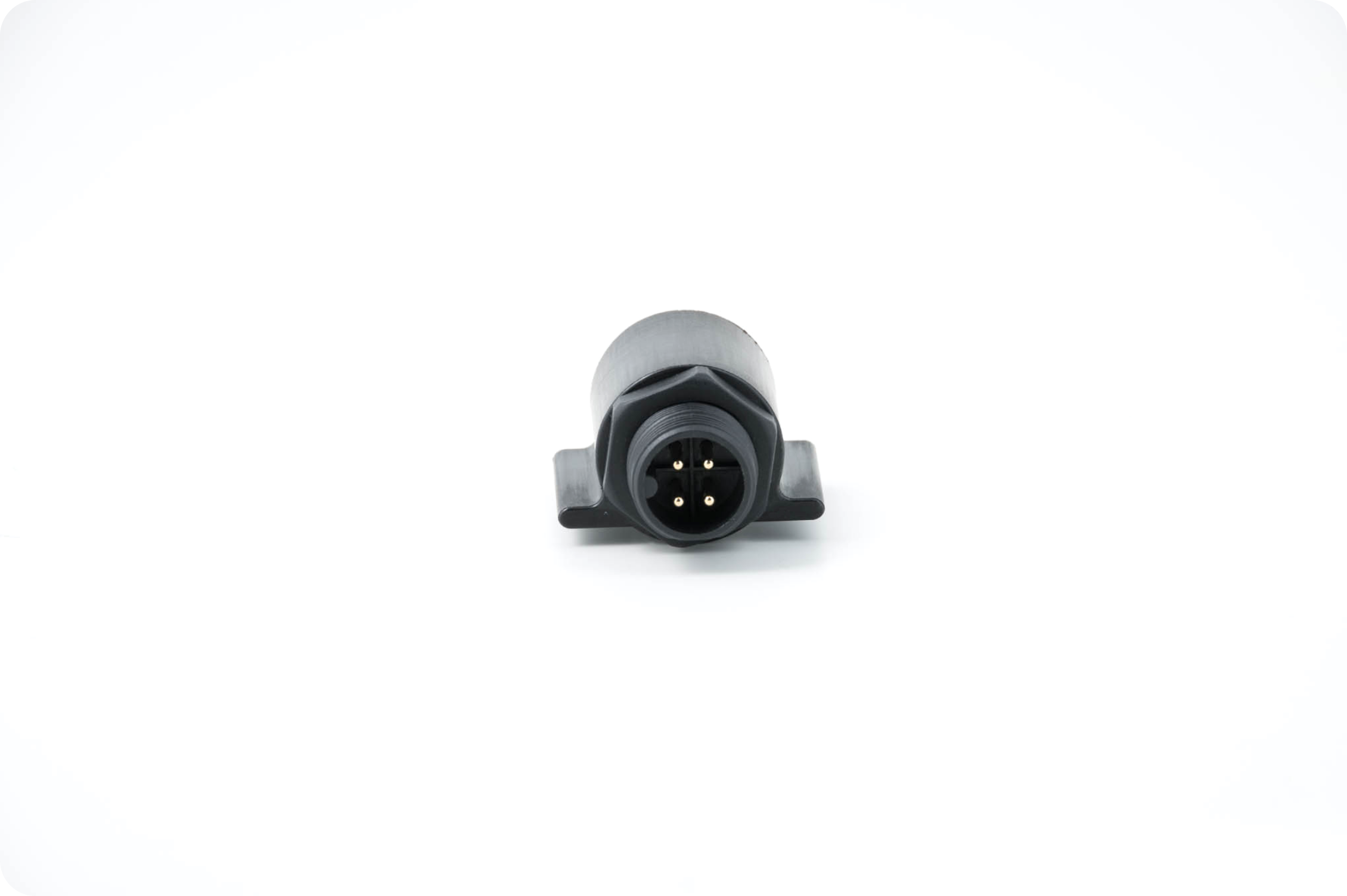

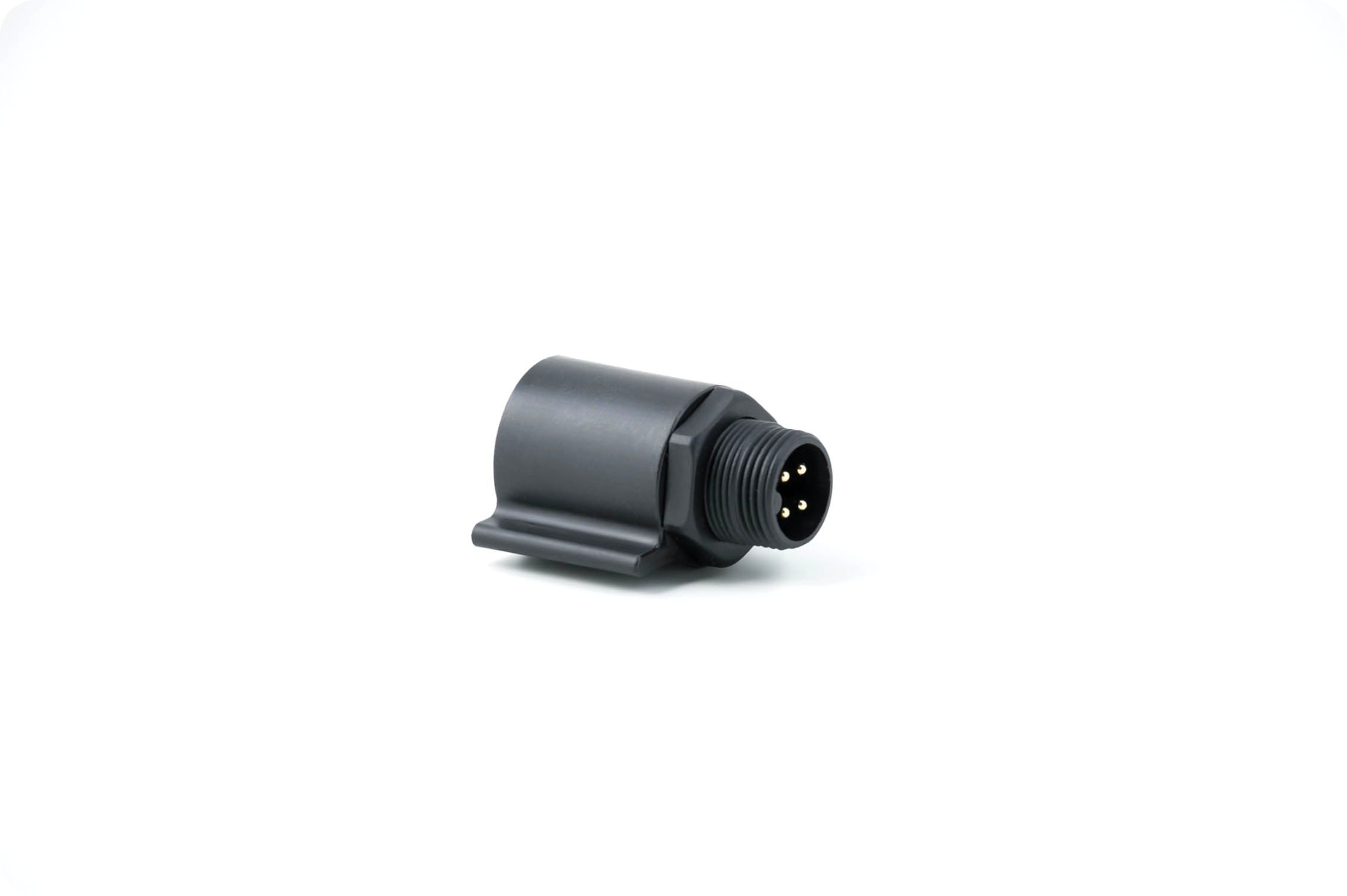

0-10V Controller

CNBLE-010 Bluetooth Controllable 0-10V Controller

  • CNBLE-010 is a BCNBLE-010 is a Bluetooth controllable, Cosmicnode Mesh (CNMesh) enabled 0-10V controller. luetooth controllable, Cosmicnode Mesh (CNMesh) enabled 0-10V controller.
  • CNBLE-010 can control any LED driver with 0-10V dimming interface.
  • CNBLE-010DA can be powered from 12-24VDC auxiliary power source from the LED driver.
  • CNBLE-010 can be easily commissioned using Cosmicnode Nodility Mobile App – available for free download Apple App Store and Google Play Store.

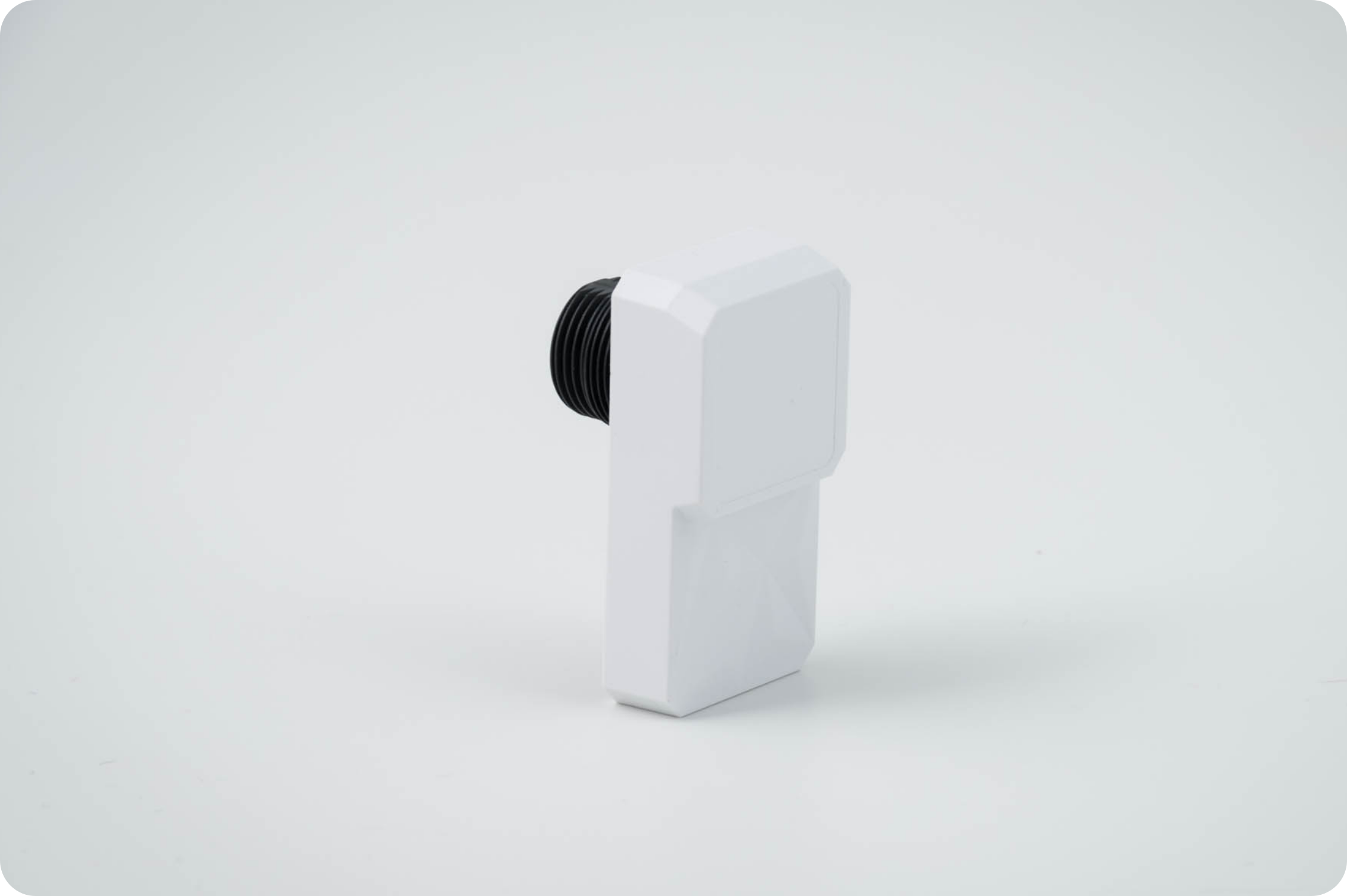

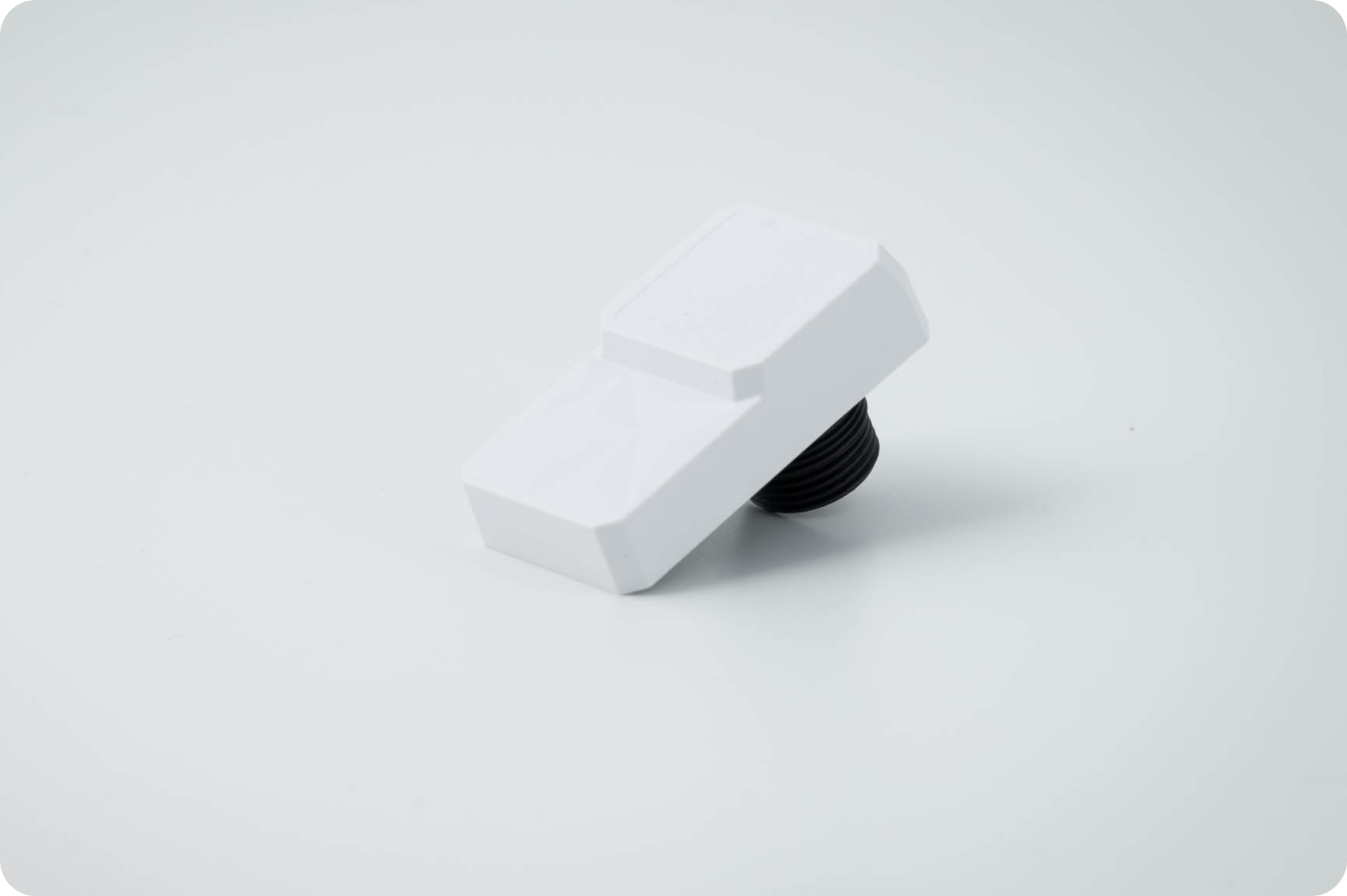

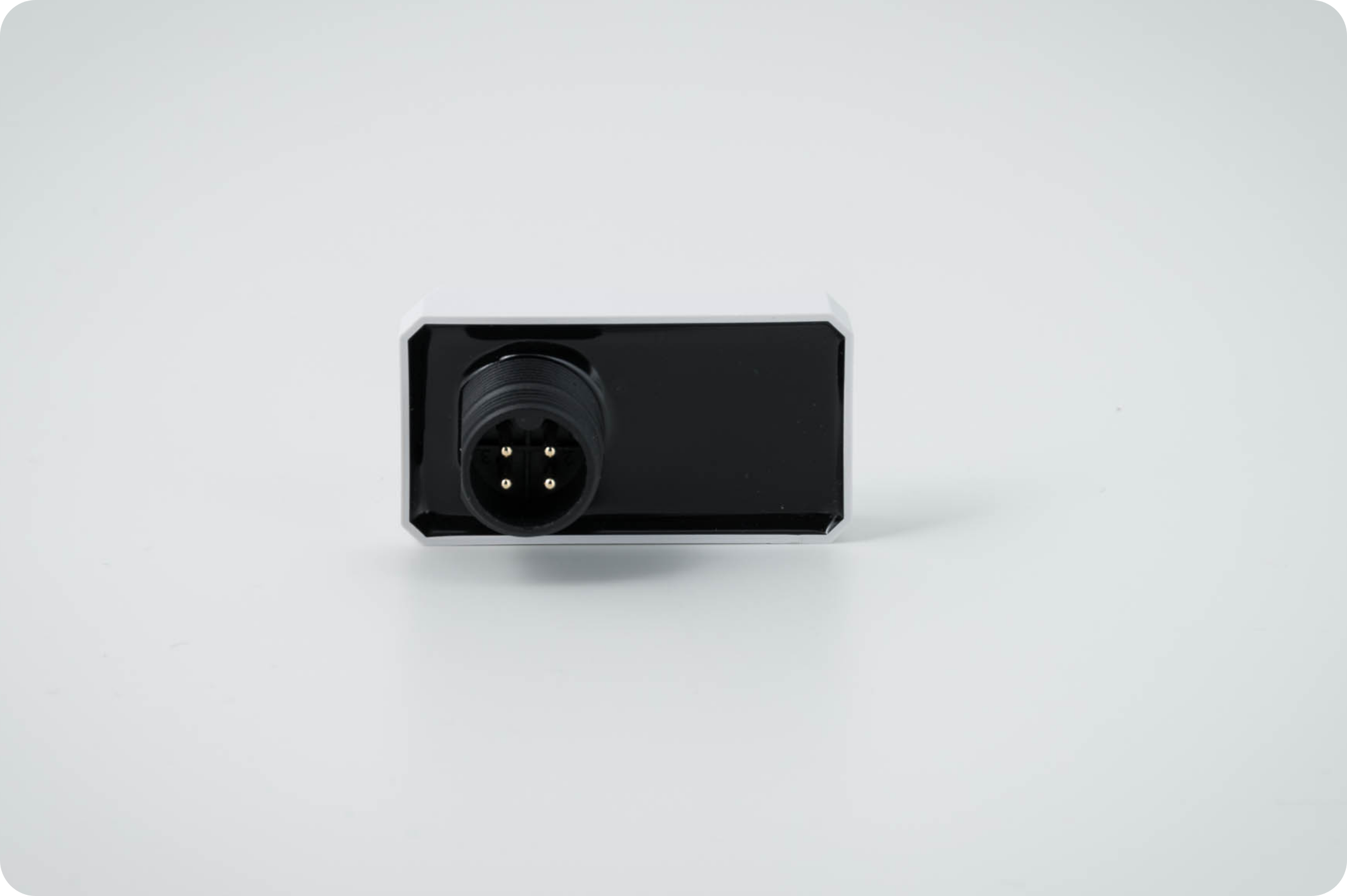

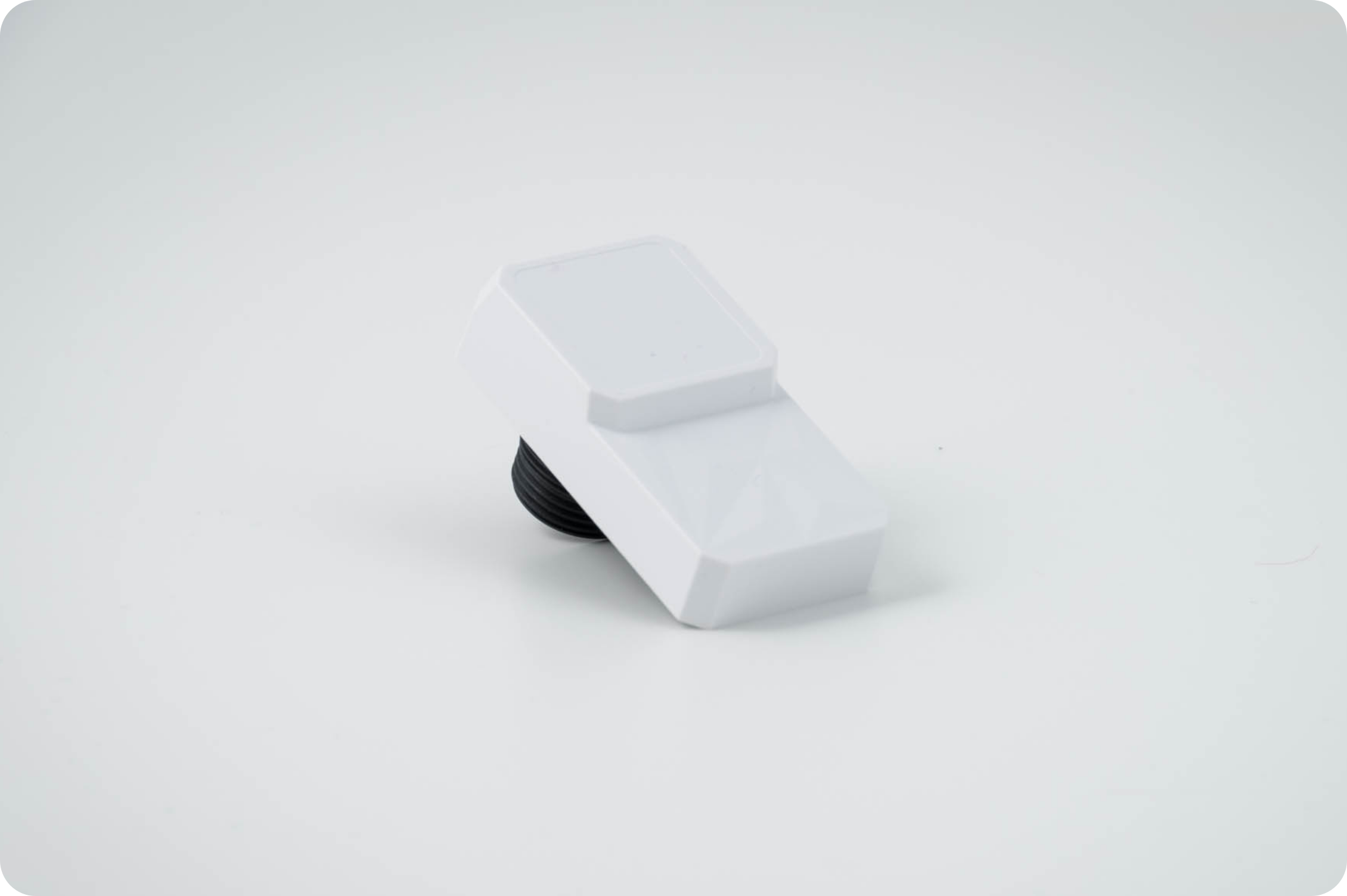

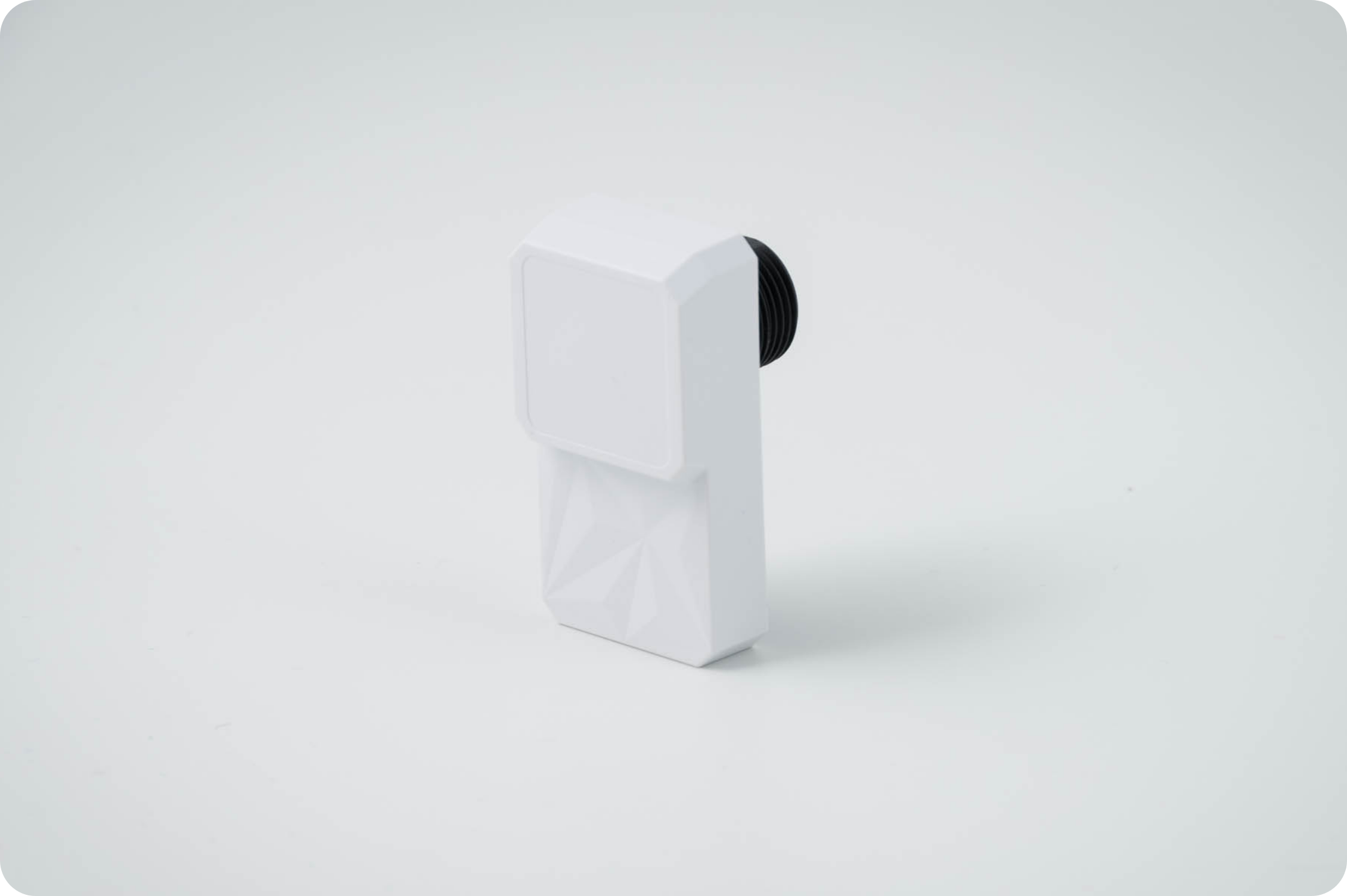

DALI Controller

CNBLE-010DA Bluetooth Controllable 0-10V/DALI Controller

  • CNBLE-010DA is a Bluetooth controllable, Cosmicnode Mesh (CNMesh) enabled dual mode controller.
  • CNBLE-010DA can control any LED driver with 0-10V dimming interface. The product can also be configured into DALI mode to control any DALI LED driver.
  • CNBLE-010DA can be powered from 12-24VDC auxiliary power source from the LED driver or from DALI bus power supply.
  • CNBLE-010 can be easily commissioned using Cosmicnode Nodility Mobile App – available for free download Apple App Store and Google Play Store.

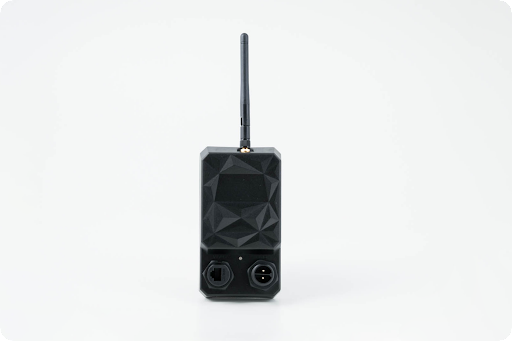

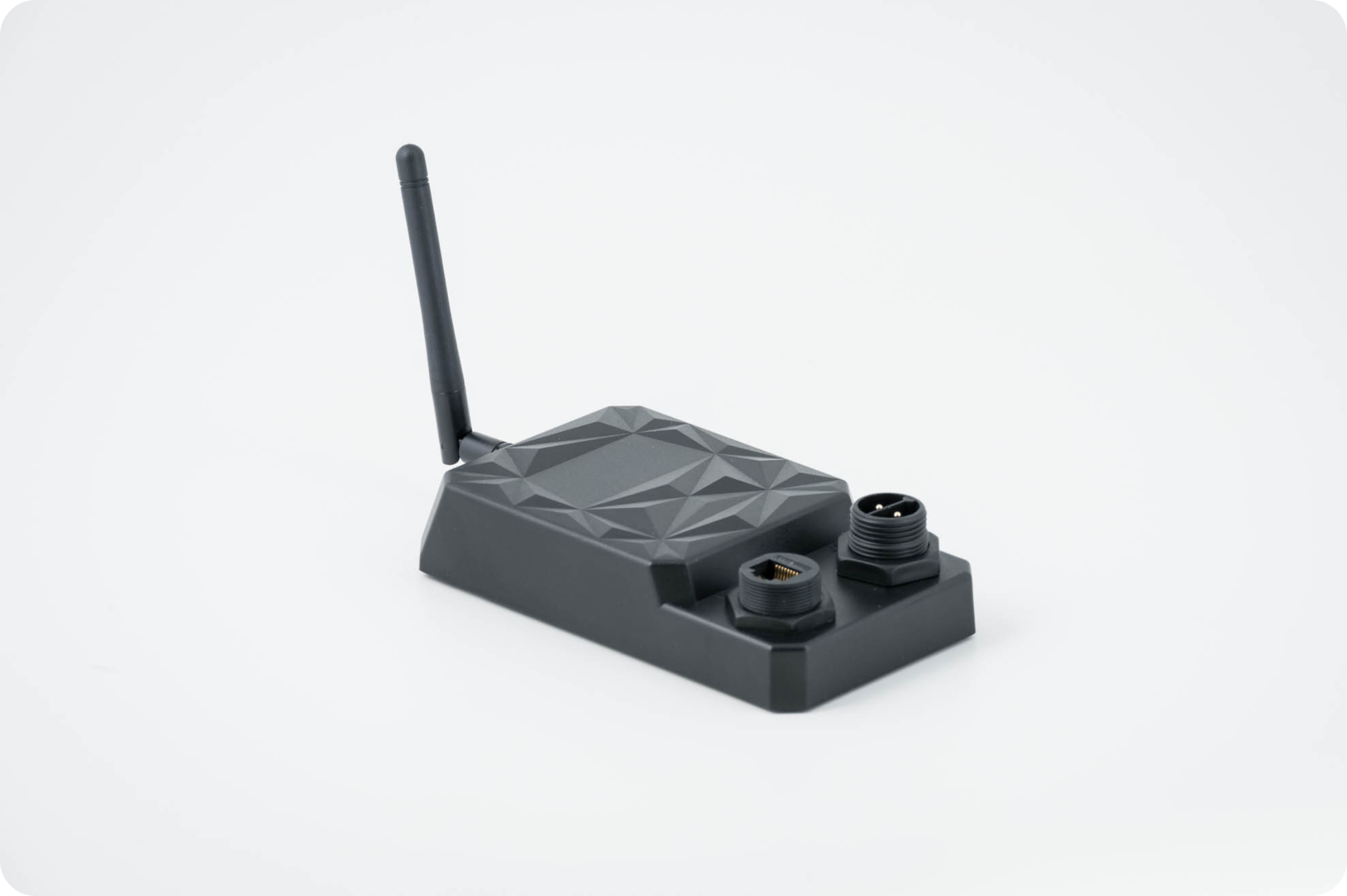

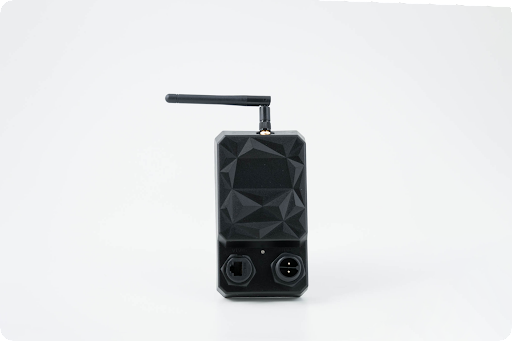

IoT Gateway

CNBLE-01GW Bluetooth and WiFi controllable IoT gateway

  • CNBLE 01GW is an IoT Gateway which acts as a bridge translating IP messages into wireless mesh commands
  • It connects Bluetooth CNMesh network to cloud
  • It comprises of 32bit MCU with Wi-Fi/Bluetooth/PoE Ethernet, 16 MB Flash
  • Supports following protocols HTTP / MQTT / CoAP / Modbus, OTA
  • A light weight web application can be hosted on gateway enabling user to control and monitor lights and other devices in a small CNMesh network

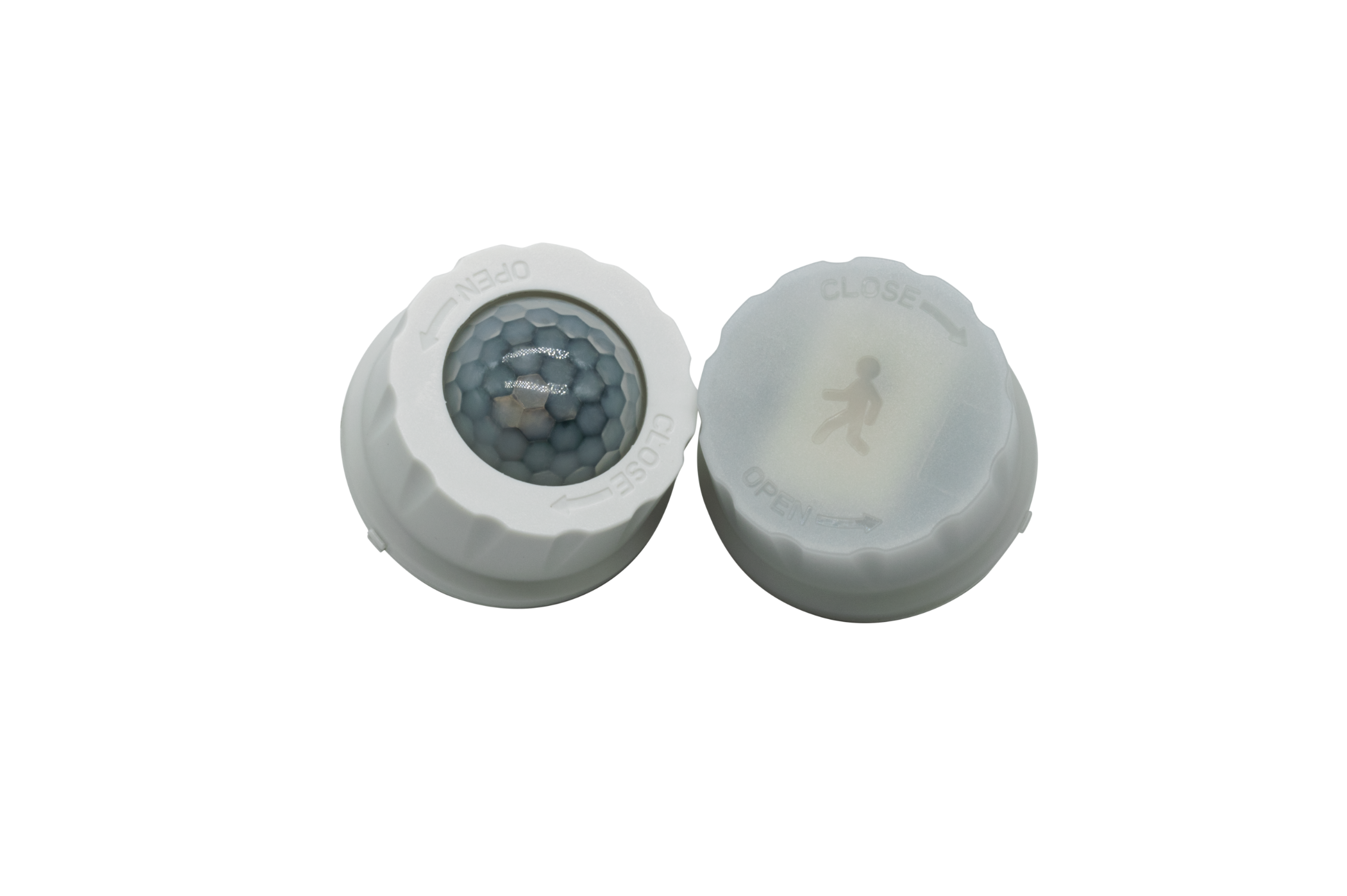

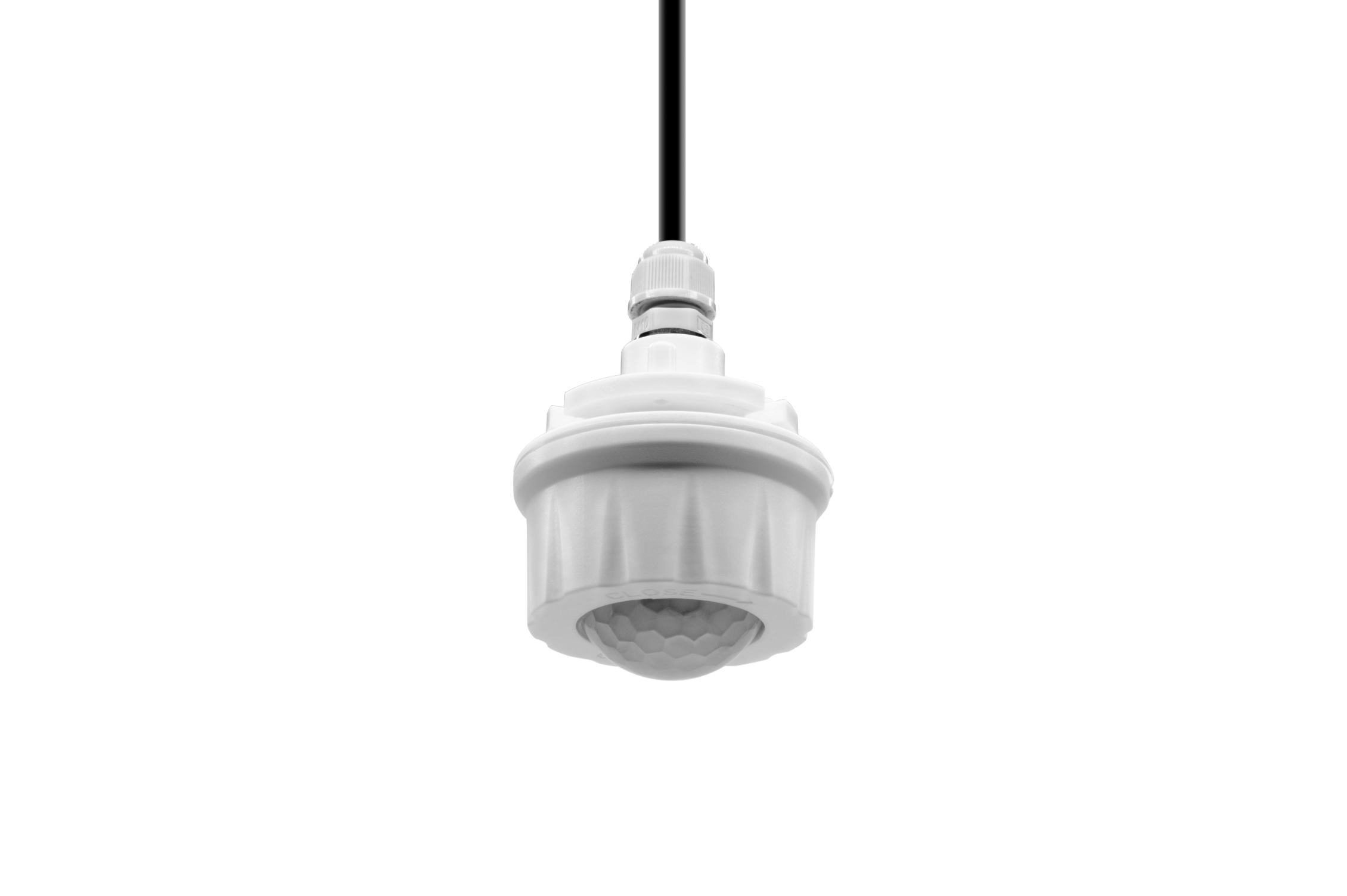

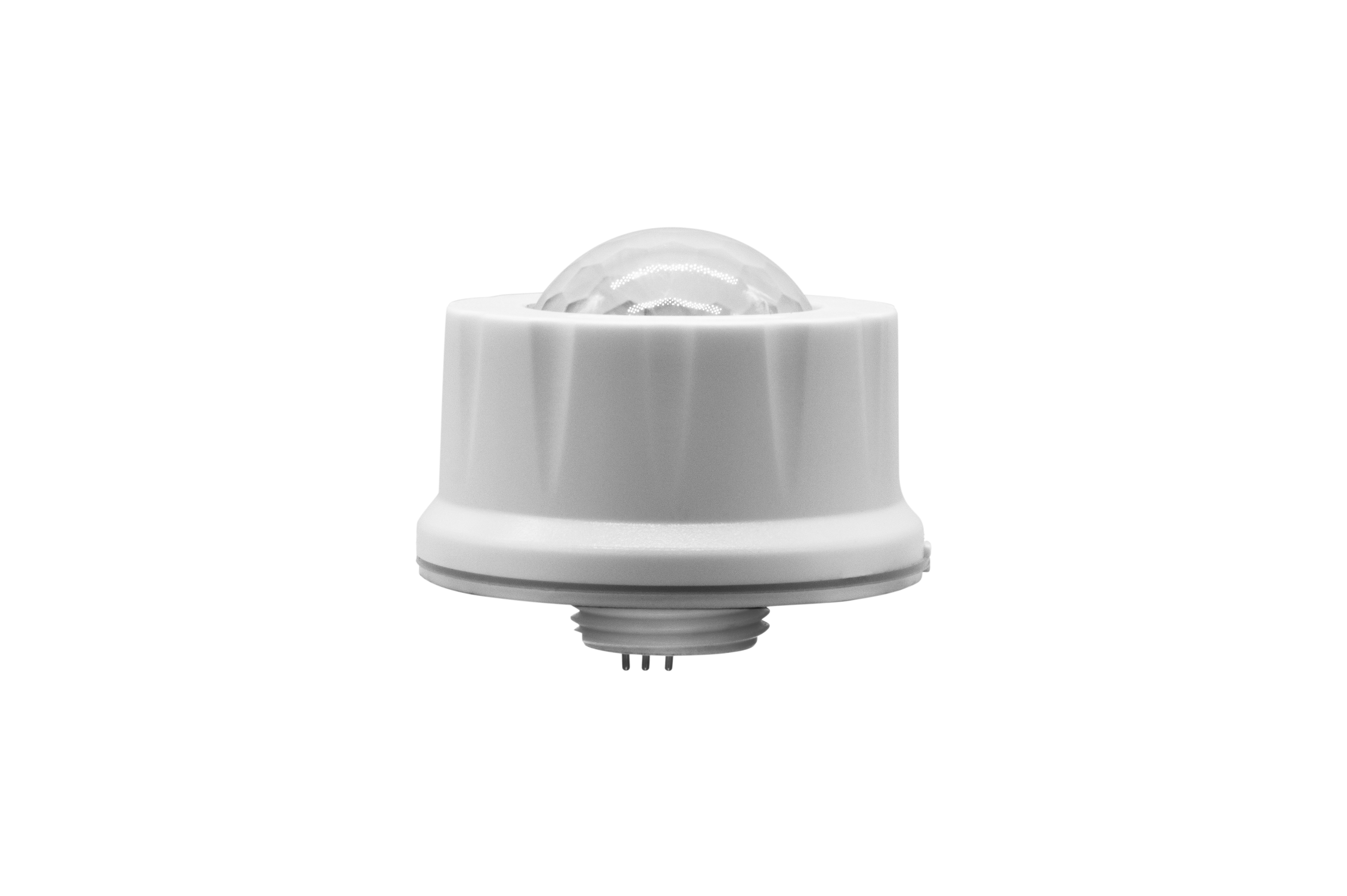

High Bay – PIR Sensor

CNBLE-01HBP Bluetooth Controllable High Bay PIR Sensor

  • CNBLE-01HBP is a Bluetooth controllable, Cosmicnode Mesh (CNMesh) enabled High Bay – PIR Sensor.
  • CNBLE-01HBP can be powered from 12-24VDC auxiliary power source from the LED driver.
  • Supports On/Off and Dimming of lights based on occupancy detection.
  • Mounting height- <12m; Detection range- 3-5m; Detection angle-<120°; IP rating- IP65

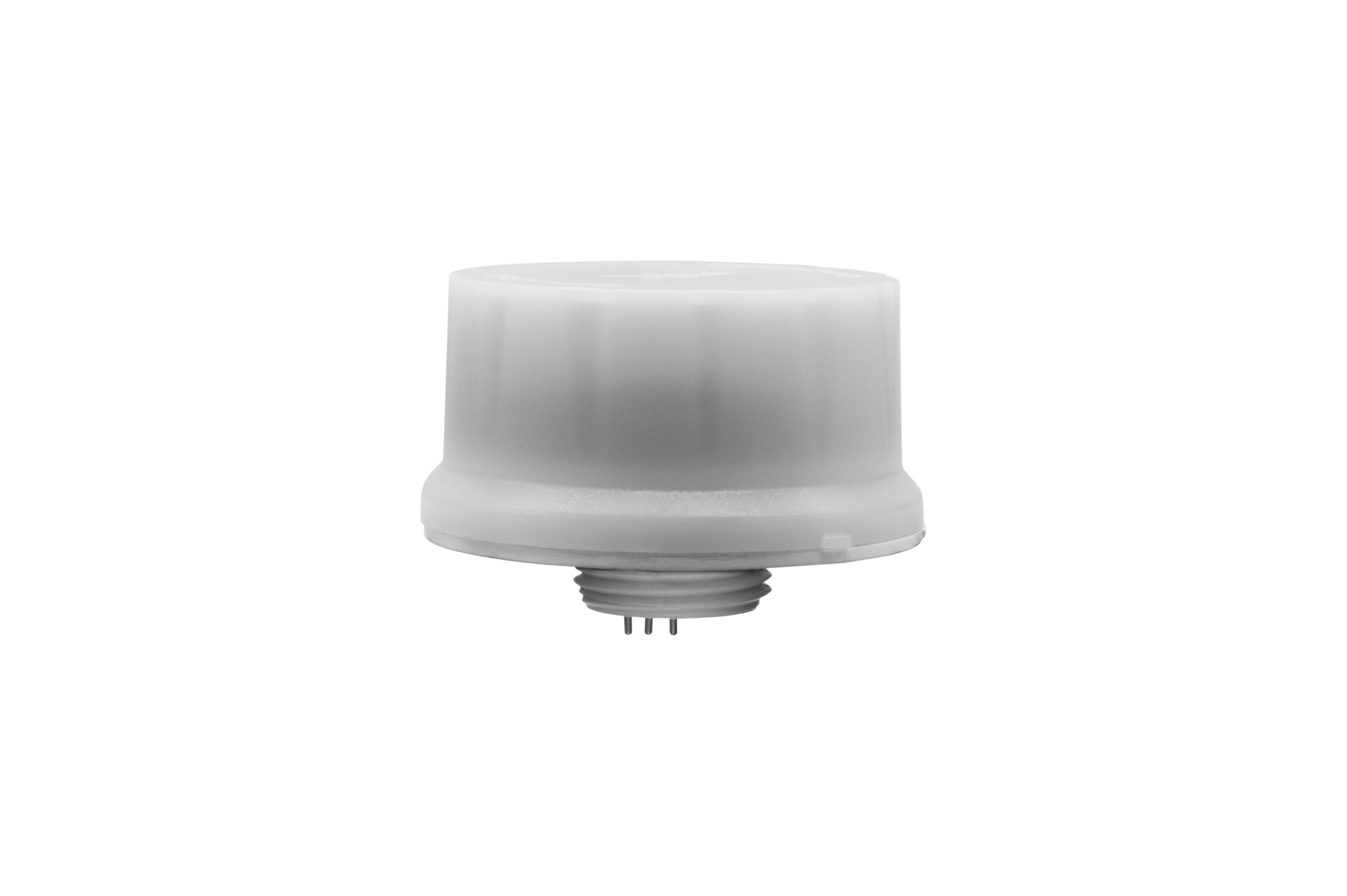

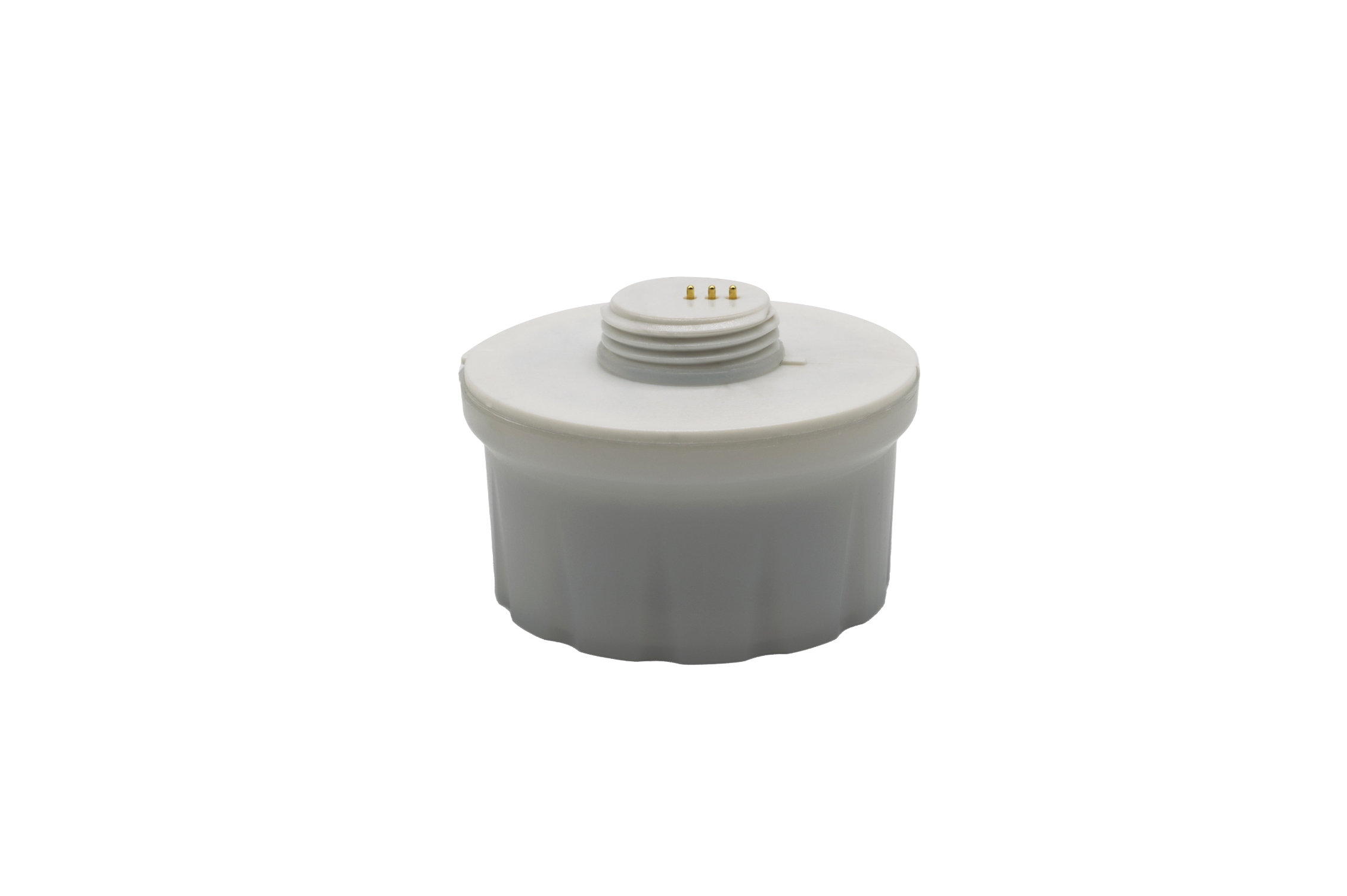

High Bay – Microwave Sensor

CNBLE-01HBM Bluetooth Controllable High Bay Microwave Sensor

  • CNBLE-01HBM is a Bluetooth controllable, Cosmicnode Mesh (CNMesh) enabled High Bay – Microwave Sensor.
  • CNBLE-01HBM can be powered from 12-24VDC auxiliary power source from the LED driver.
  • Supports On/Off and Dimming of lights based on occupancy detection.
  • Mounting height- <15m; Detection range- 3-6m; Detection angle- 30°-150°; IP rating- IP65

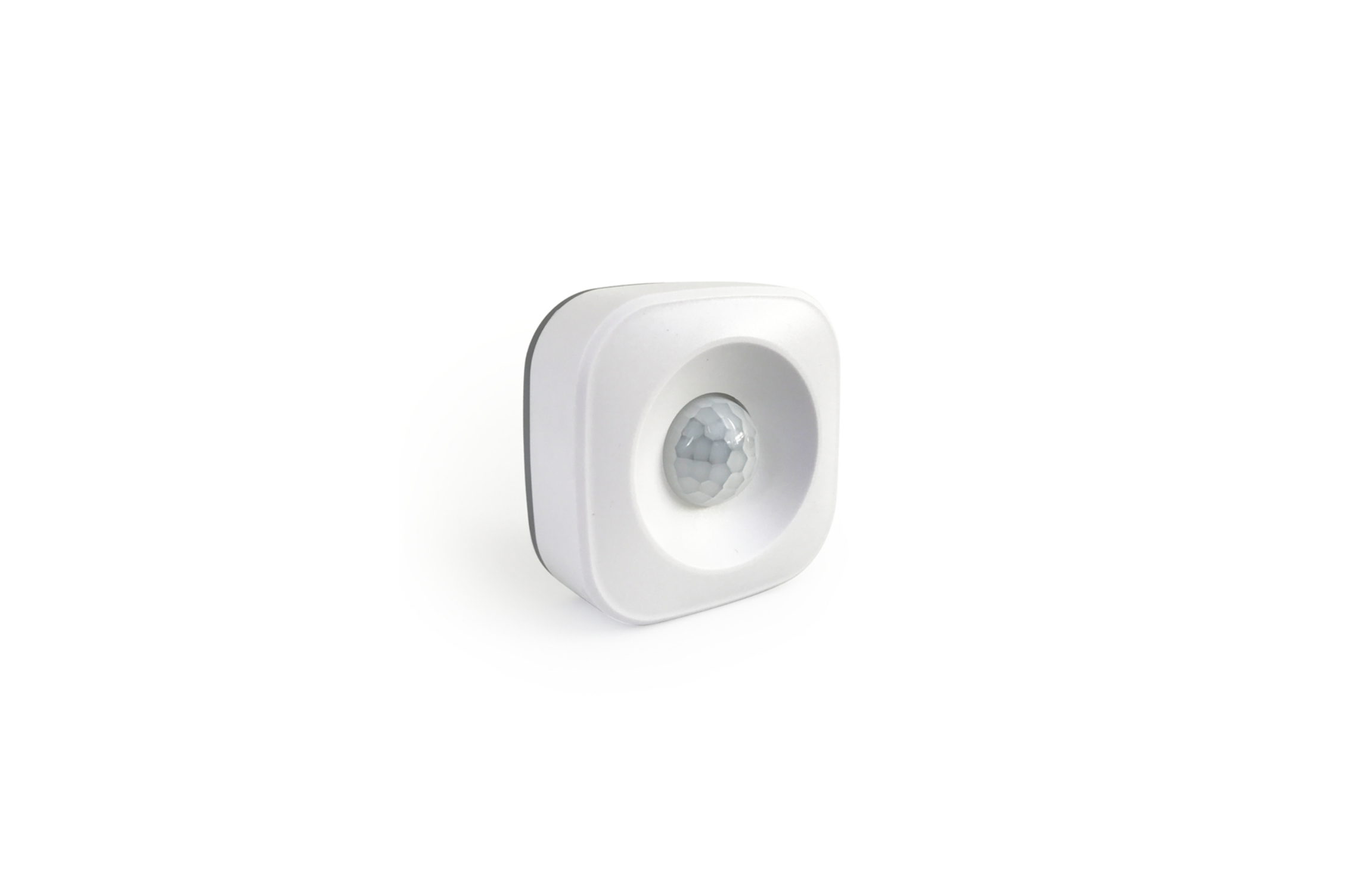

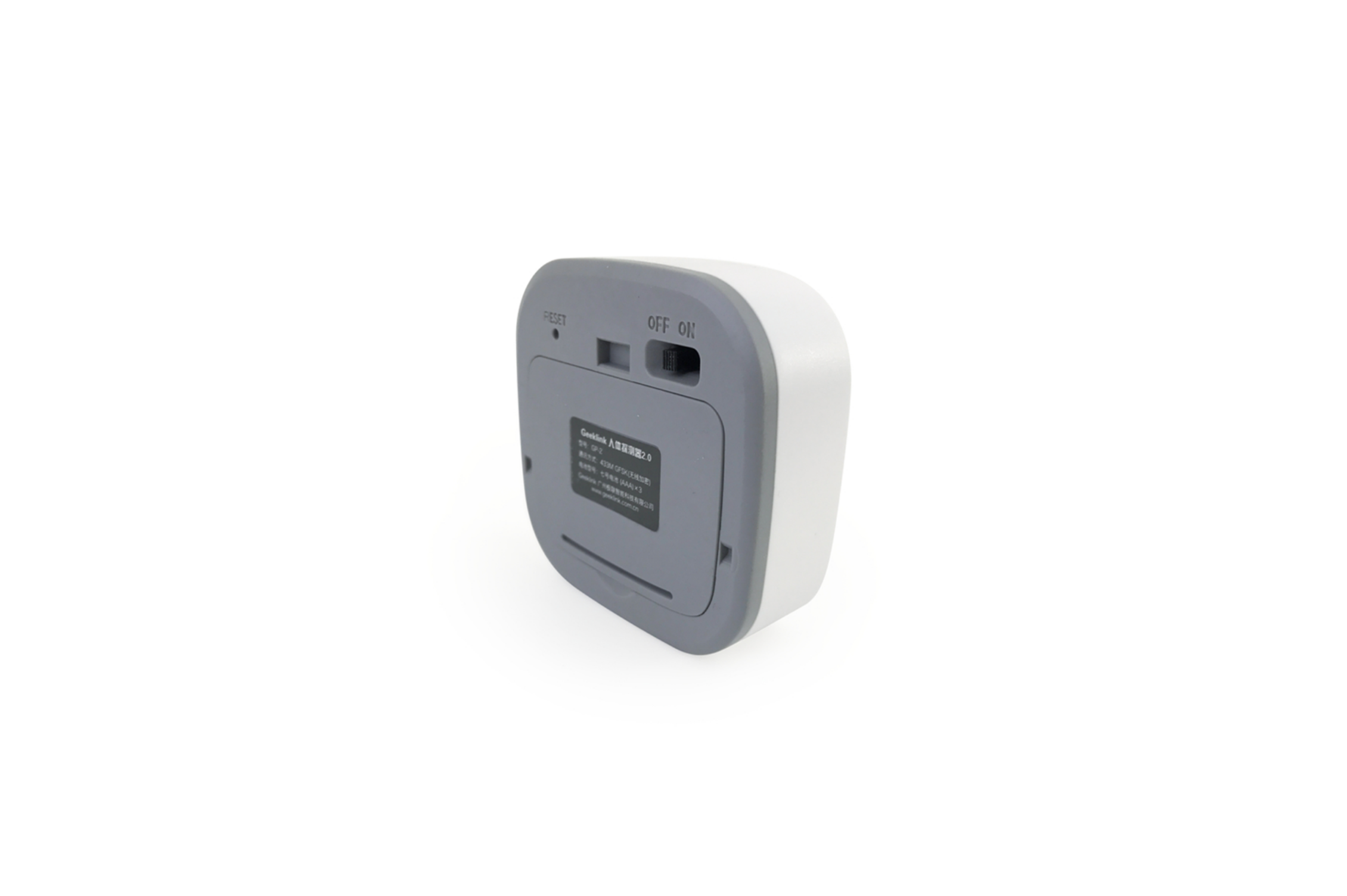

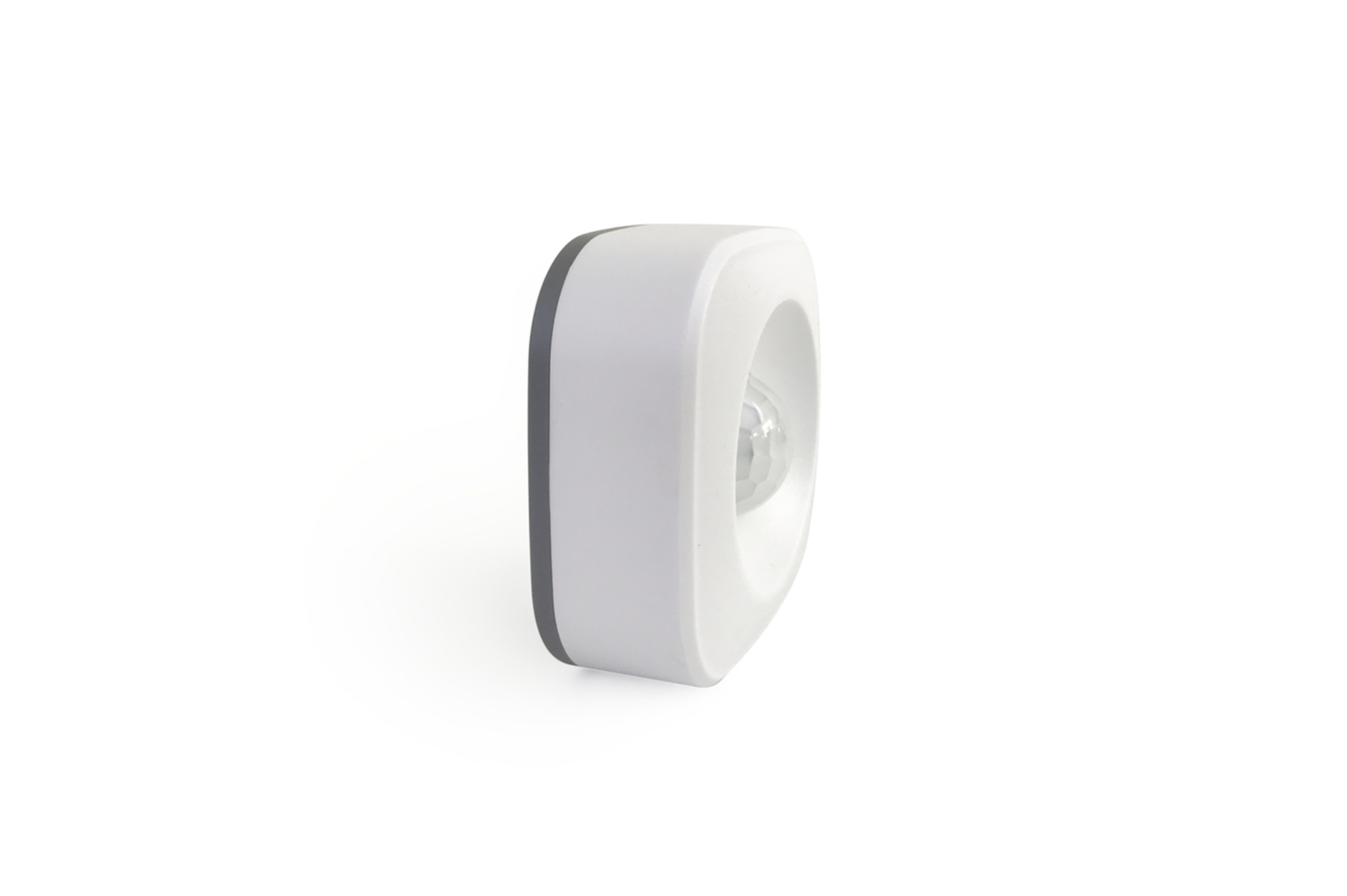

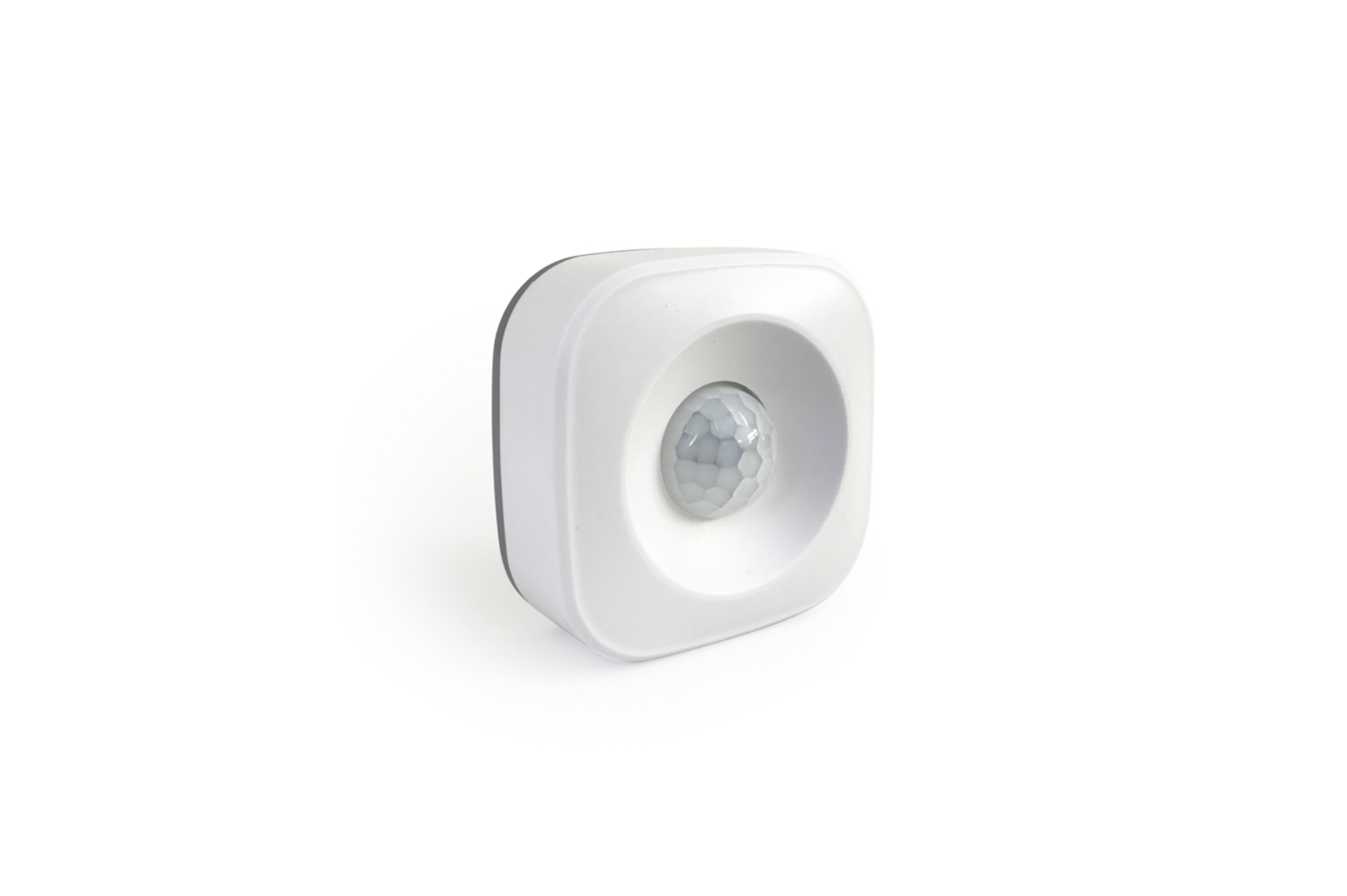

Occupancy Sensor

CNBLE-01OSS

  • CNBLE-01OSS is a Bluetooth controllable, Cosmicnode Mesh (CNMesh) enabled Occupancy Sensor.
  • CNBLE-01OSS can be powered using 3*AAA batteries.
  • Supports On/Off and Dimming of lights based on occupancy detection.
  • Mounting height- <8m; Detection range- 7m; Detection angle-<120°; IP rating- IP20

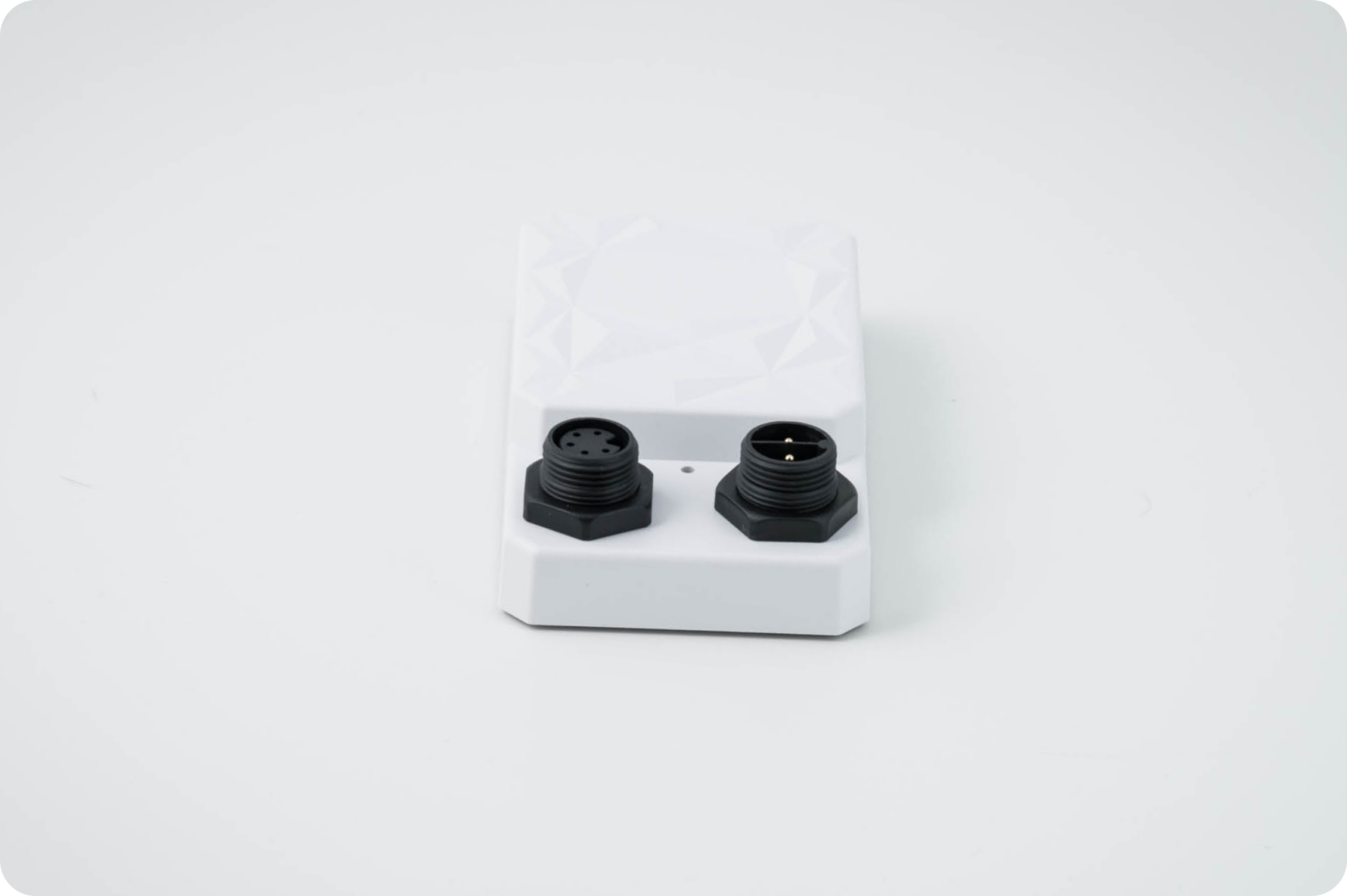

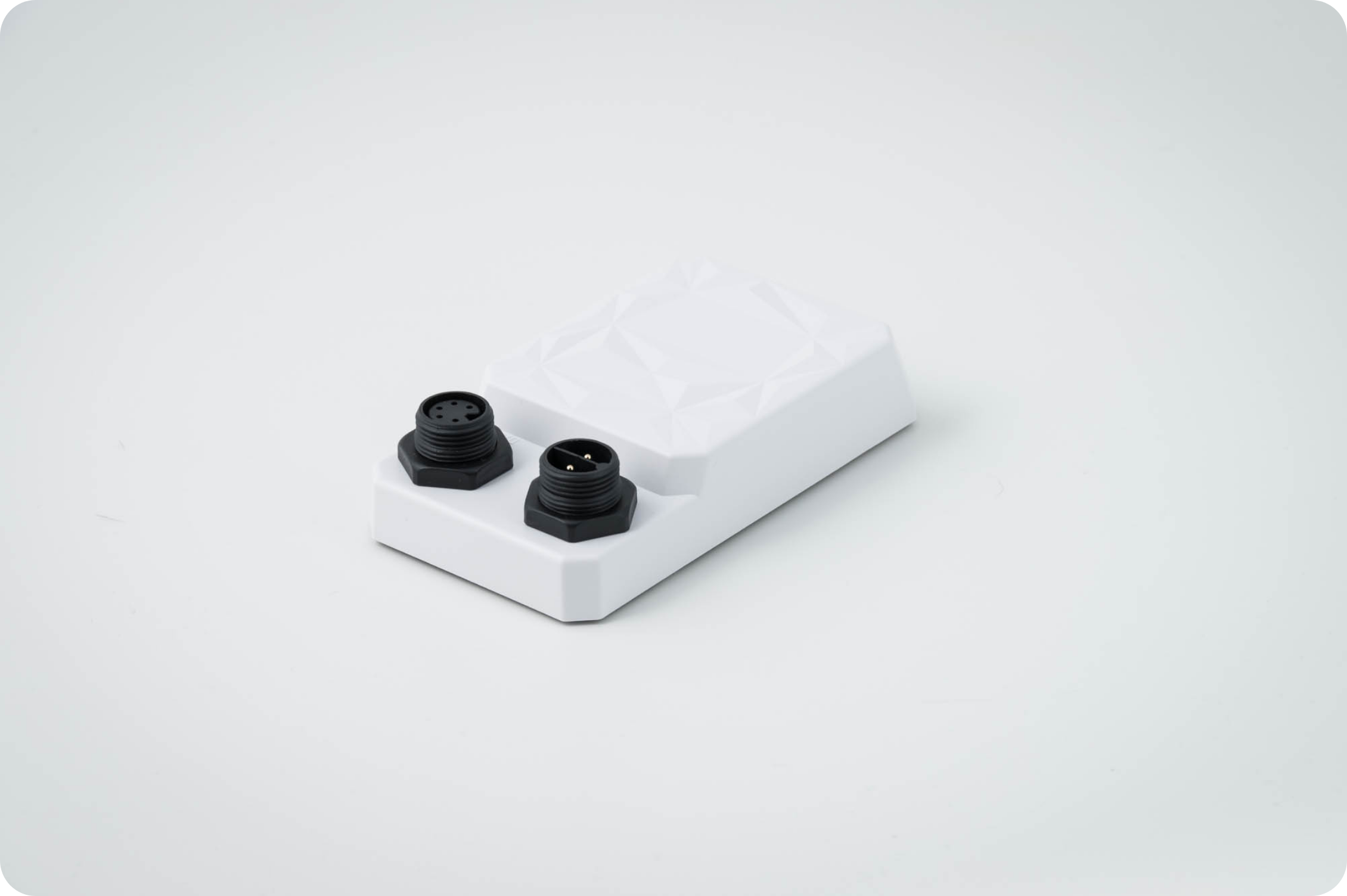

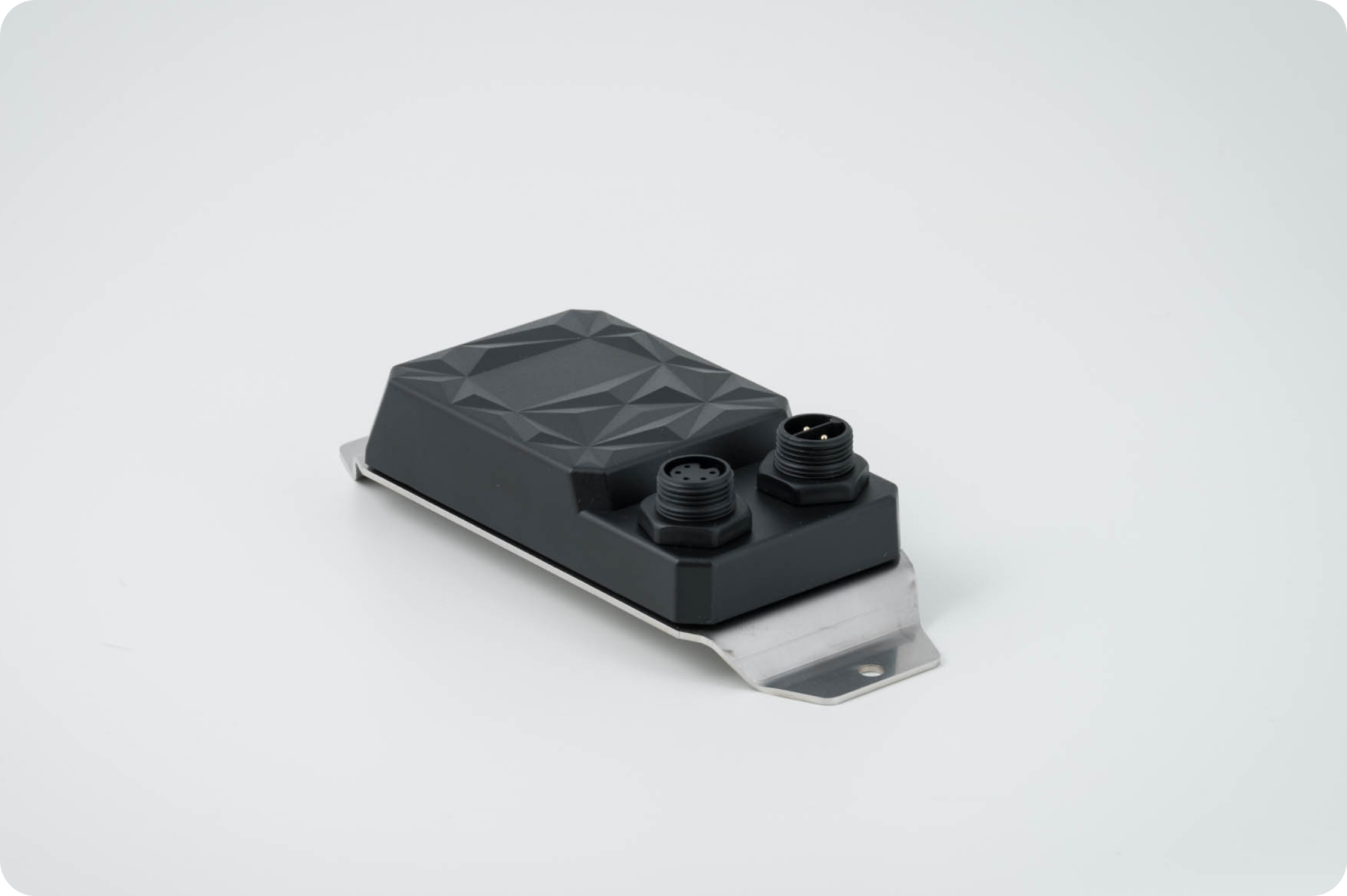

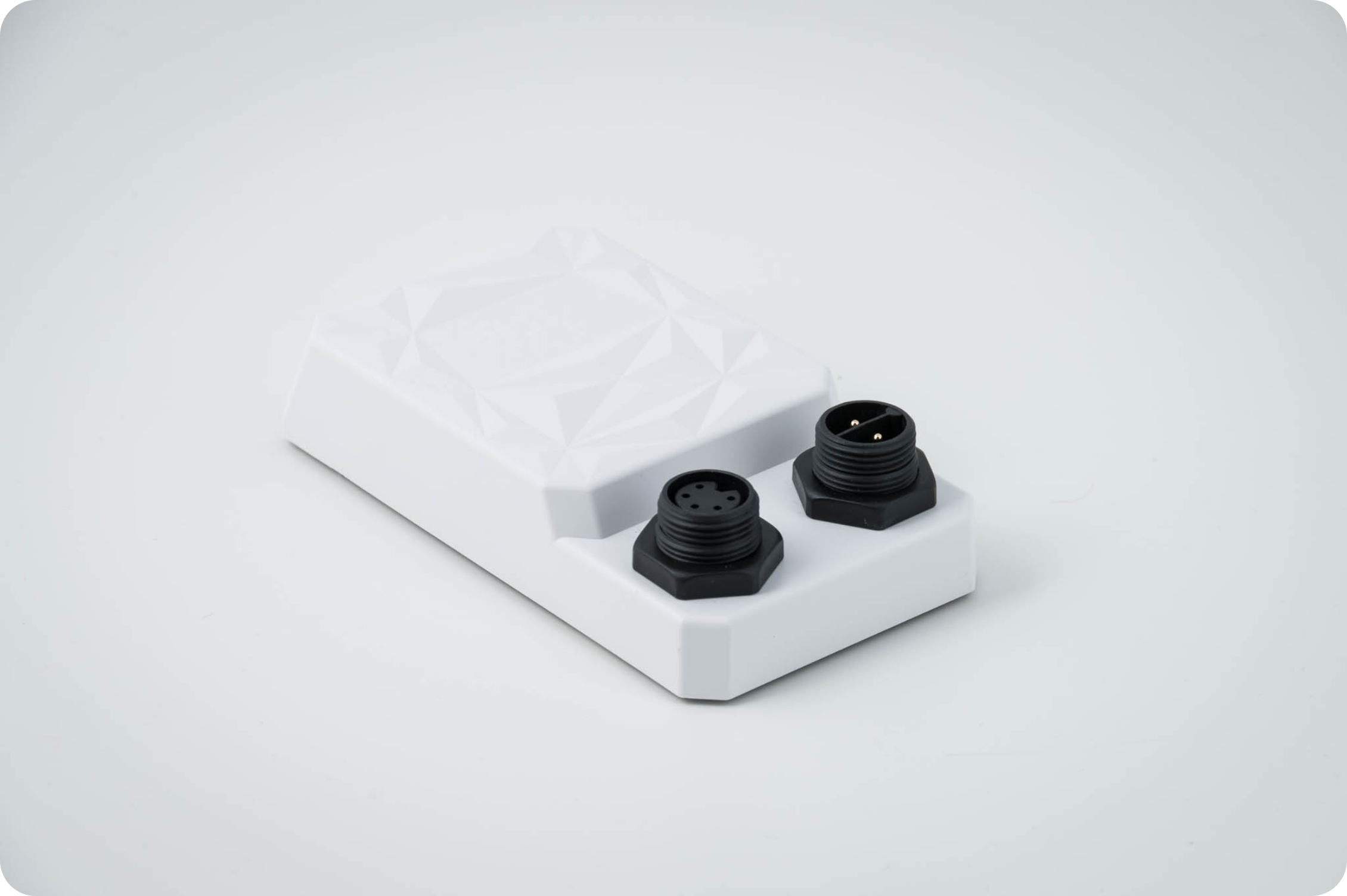

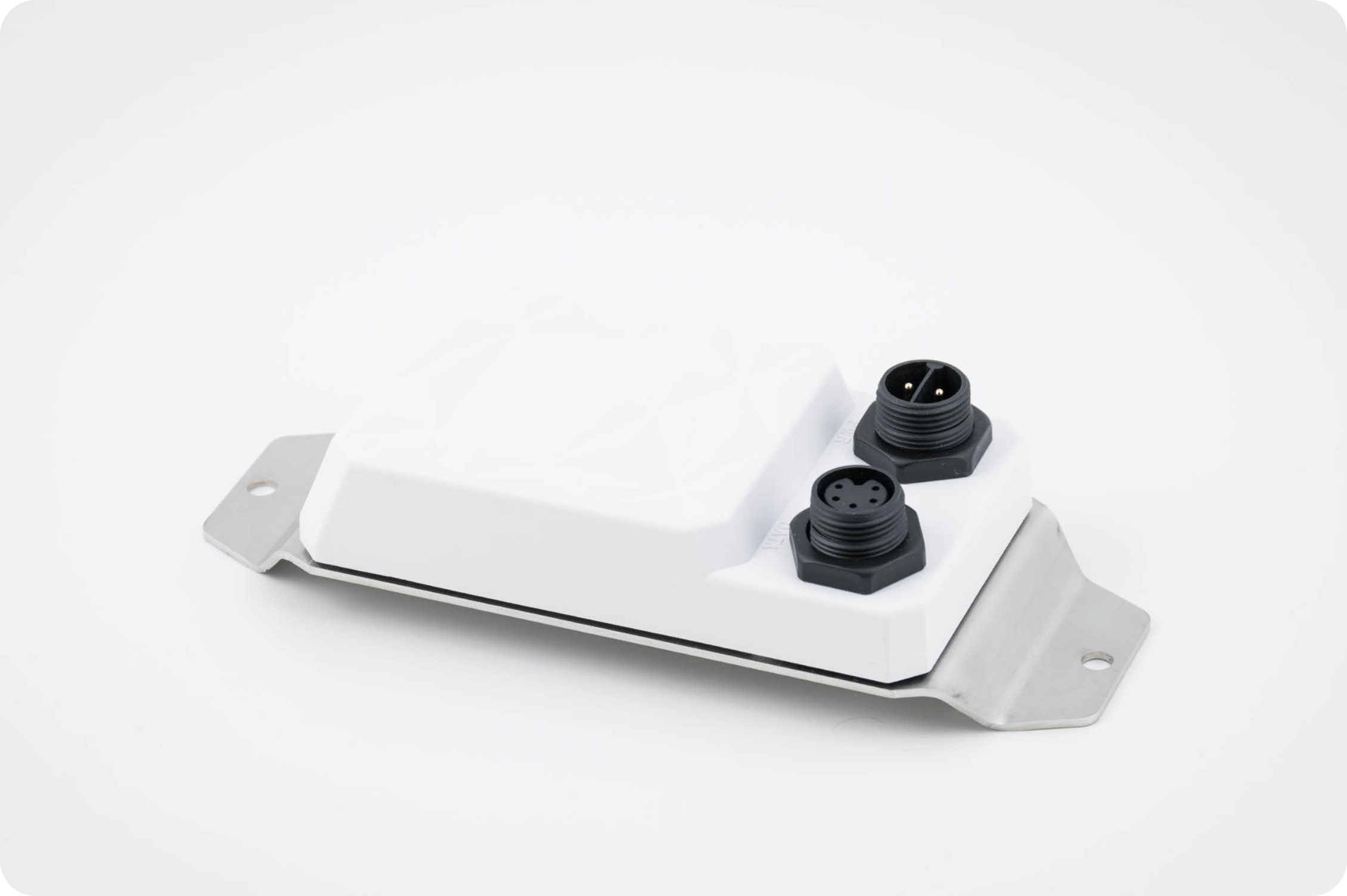

MODBUS

CNBLE-01MB Integration with Building Management System(BMS)

  • CNBLE-01MB provides seamless integration with Building Management System (BMS) using Modbus RS485 protocol
  • Integrates with off the shelf sensors like humidity, temperature, CO2, NH3 and others

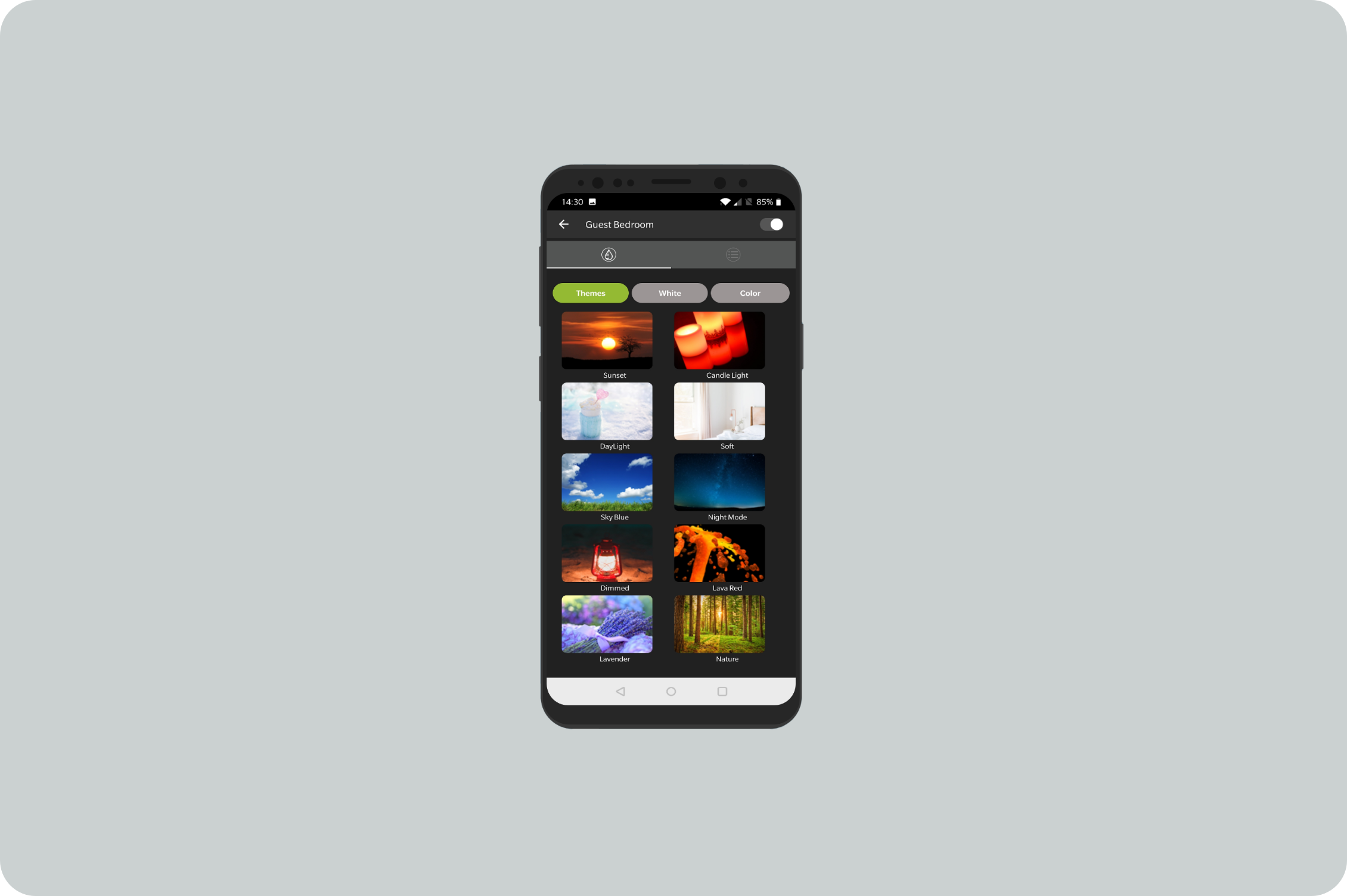

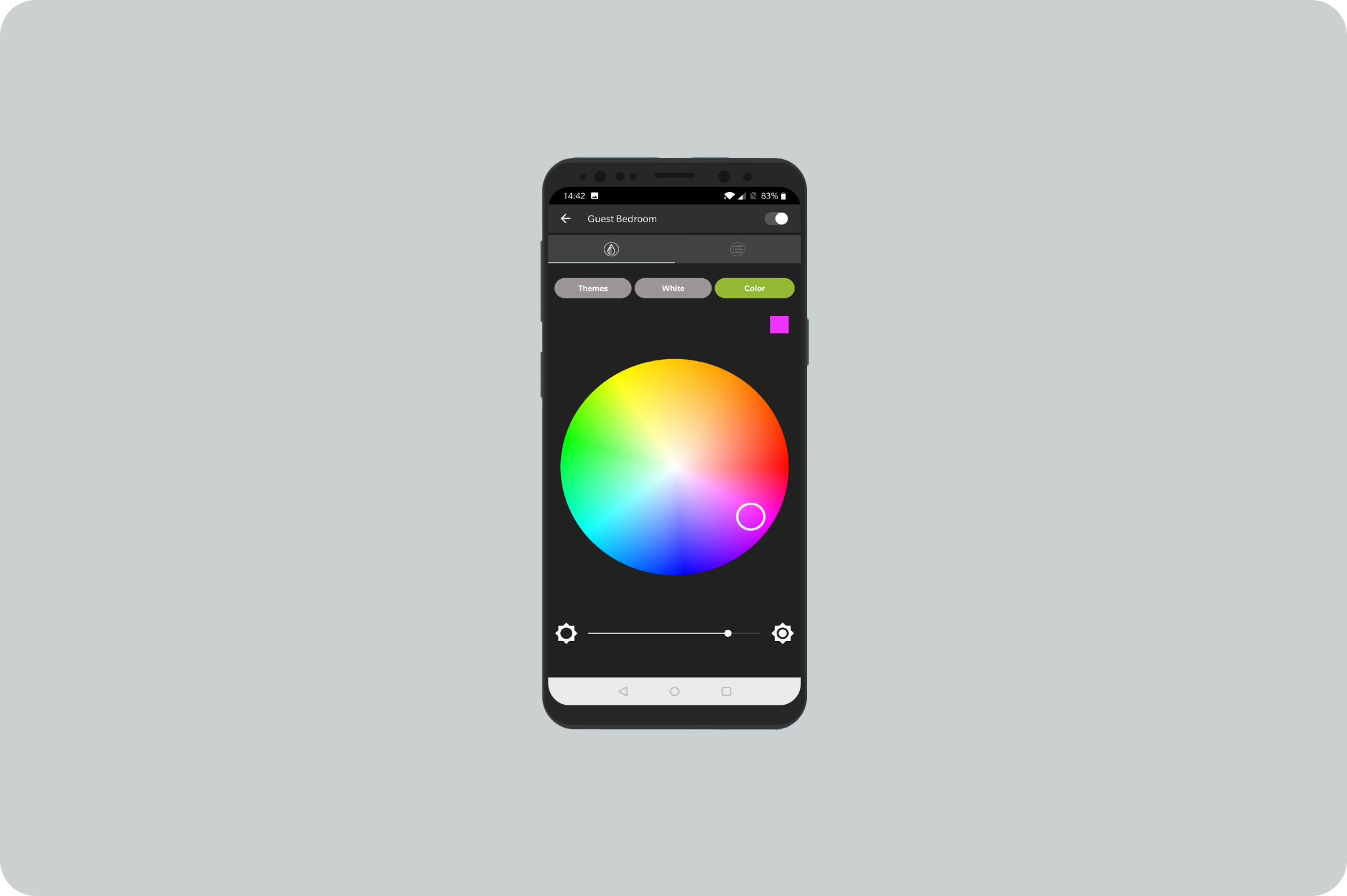

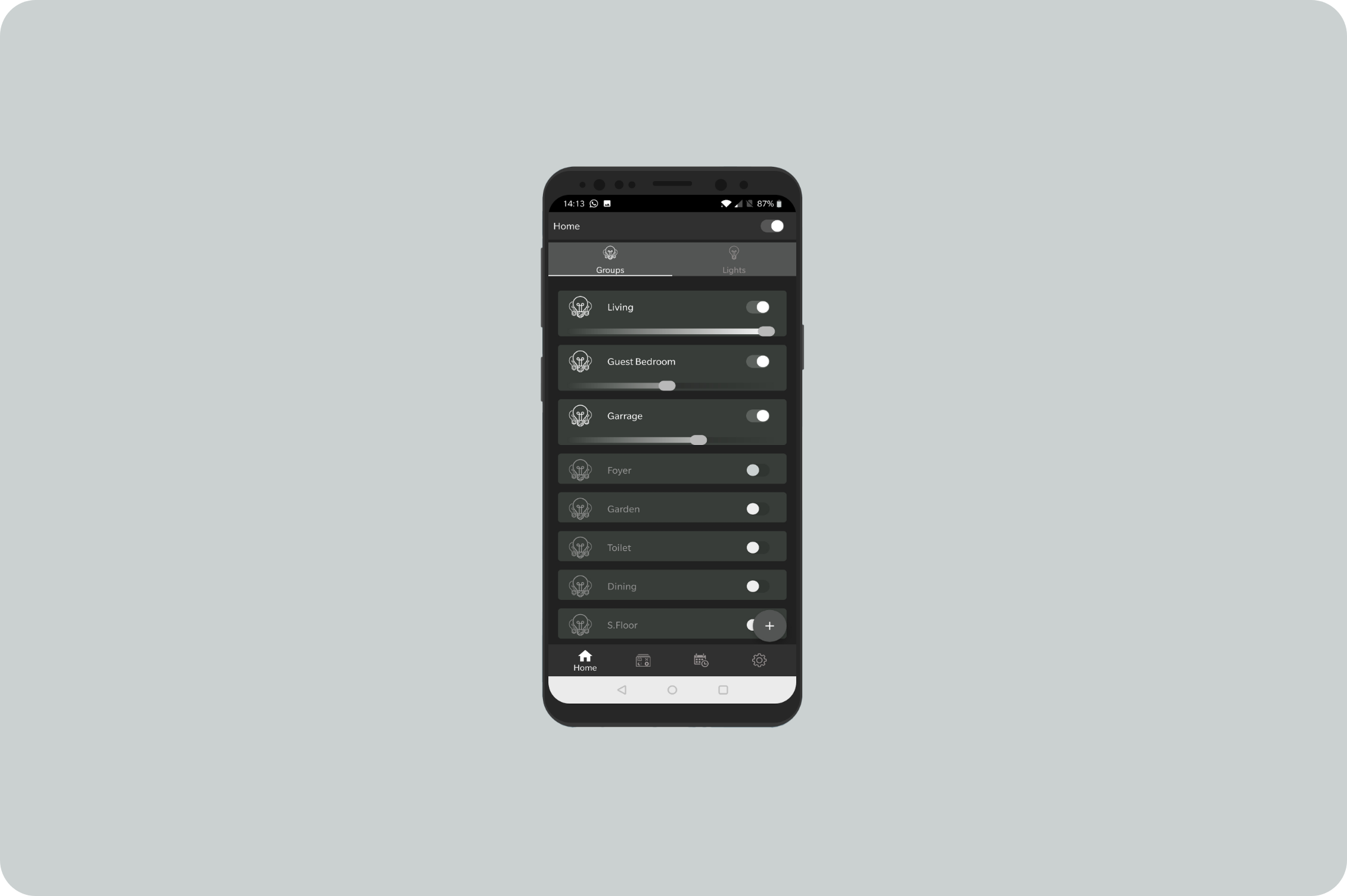

Hyades App

Hyades App is a simple and intuitive mobile app used for commissioning, controlling and managing Cosmicnode powered lights and other accessories like smart switches and sensors

  • Control brightness, Color temperature and RGB Color
  • Create and manage groups, timer and scenes
  • Pre-defined lighting themes
  • Monitor live status of lights
  • Control lights locally via Bluetooth or remotely via gateway

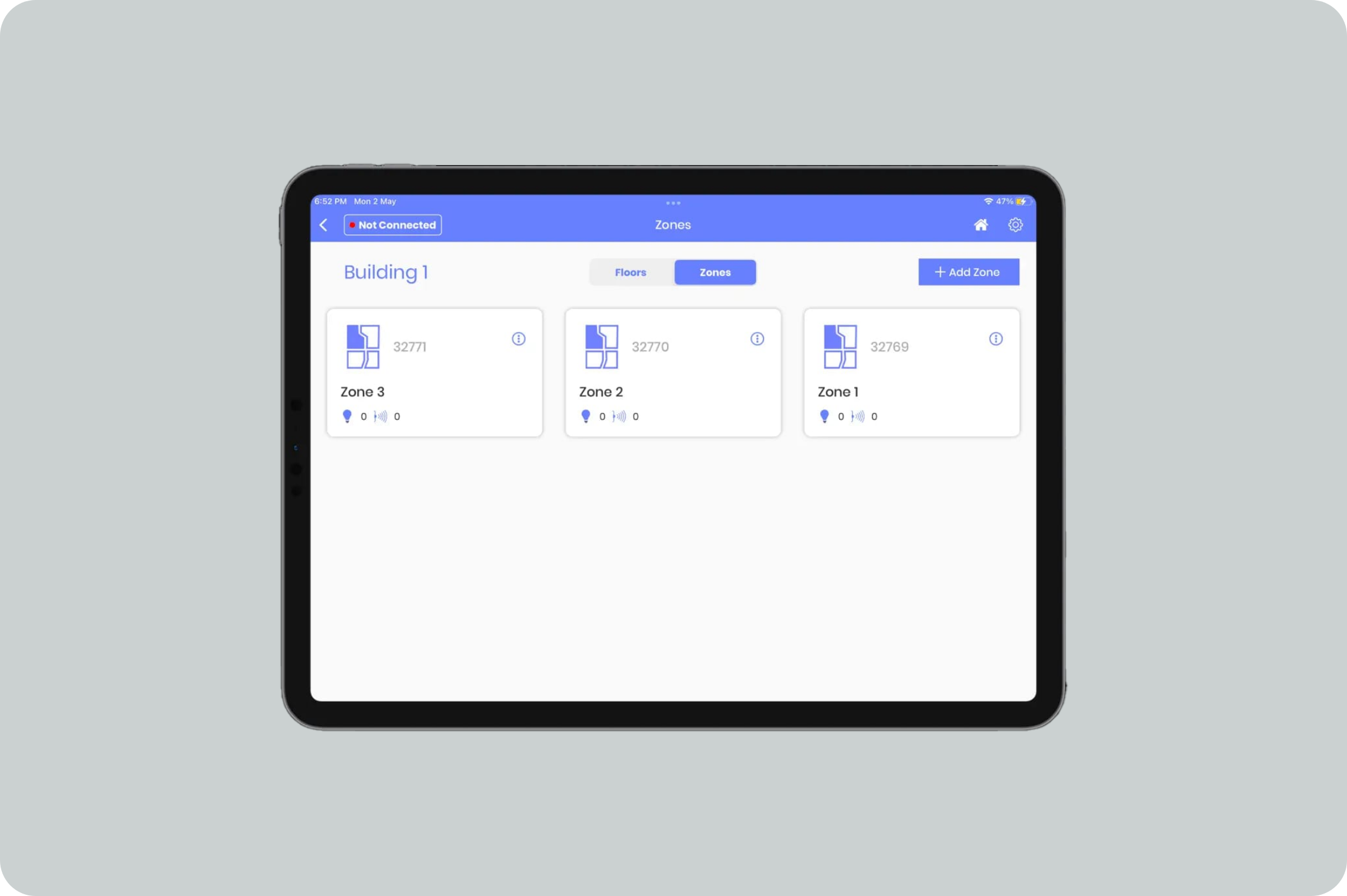

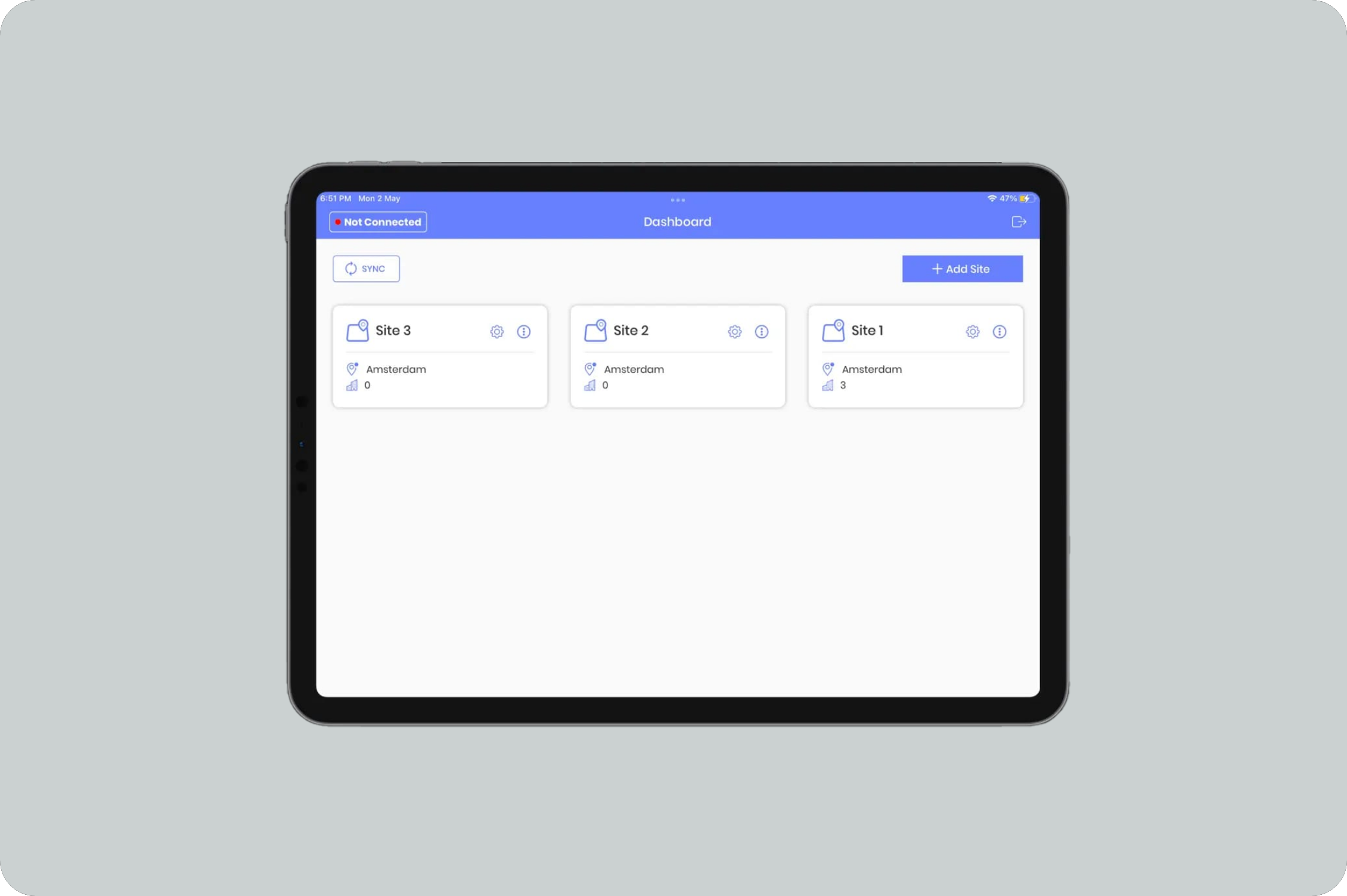

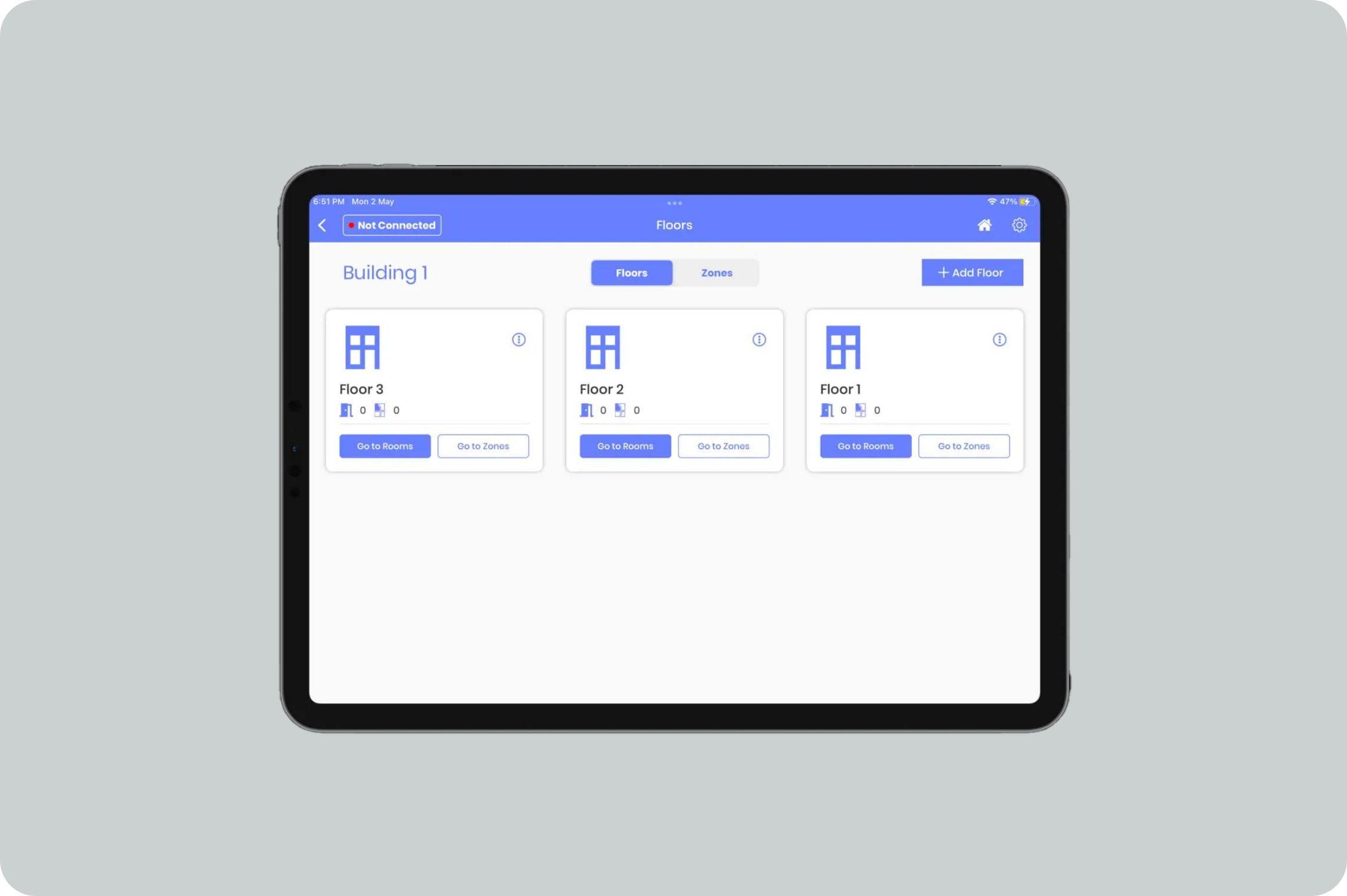

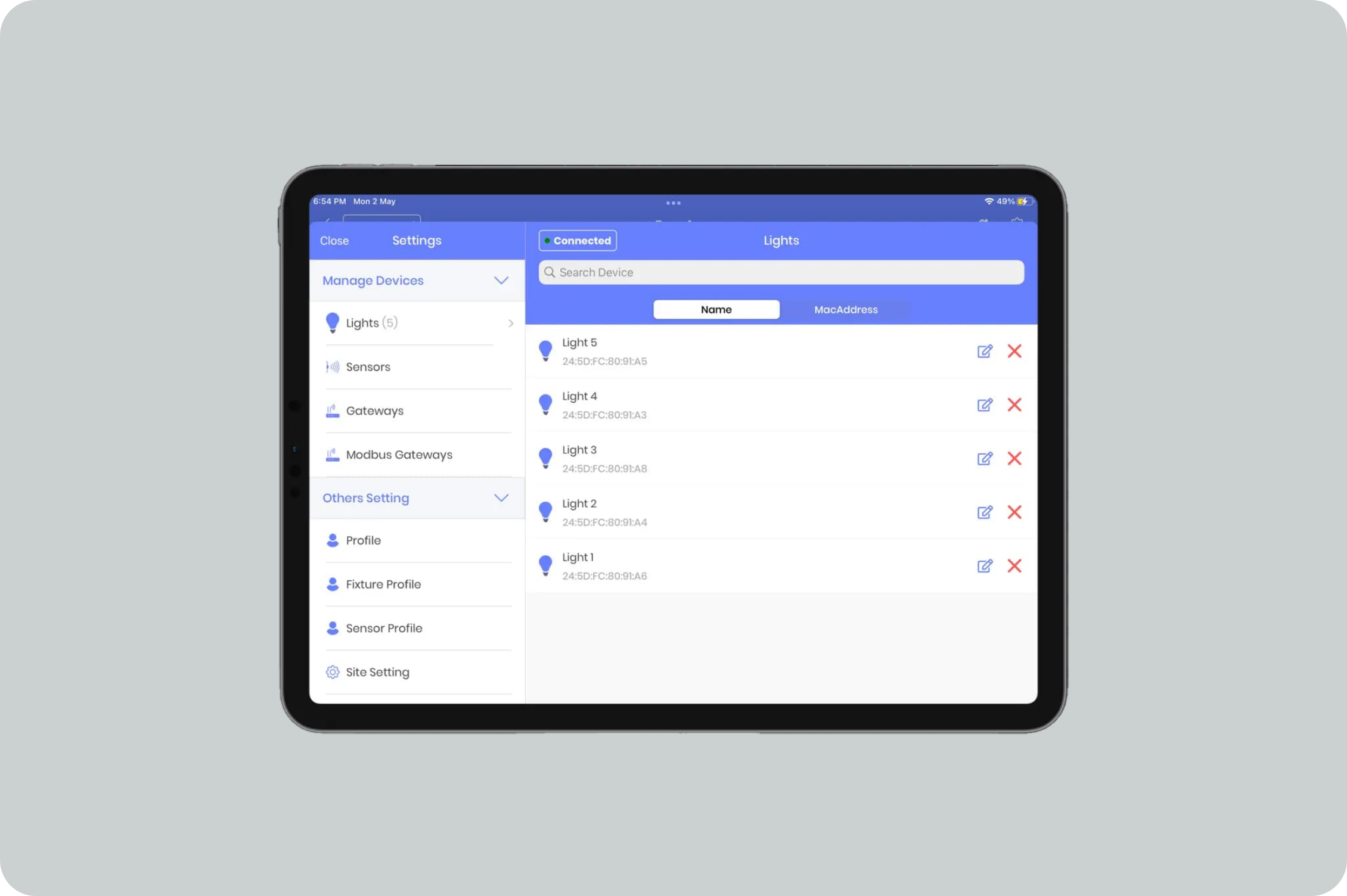

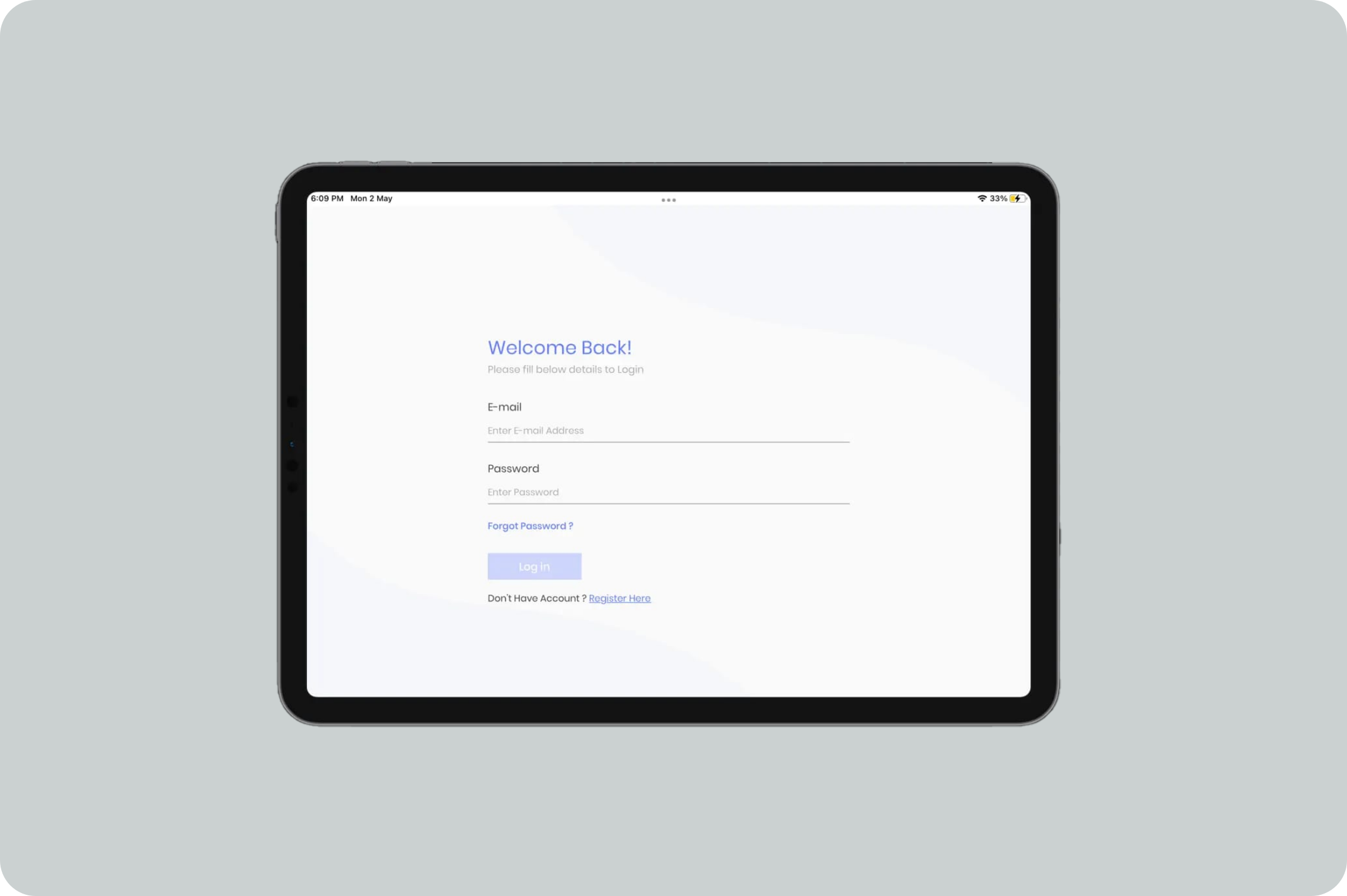

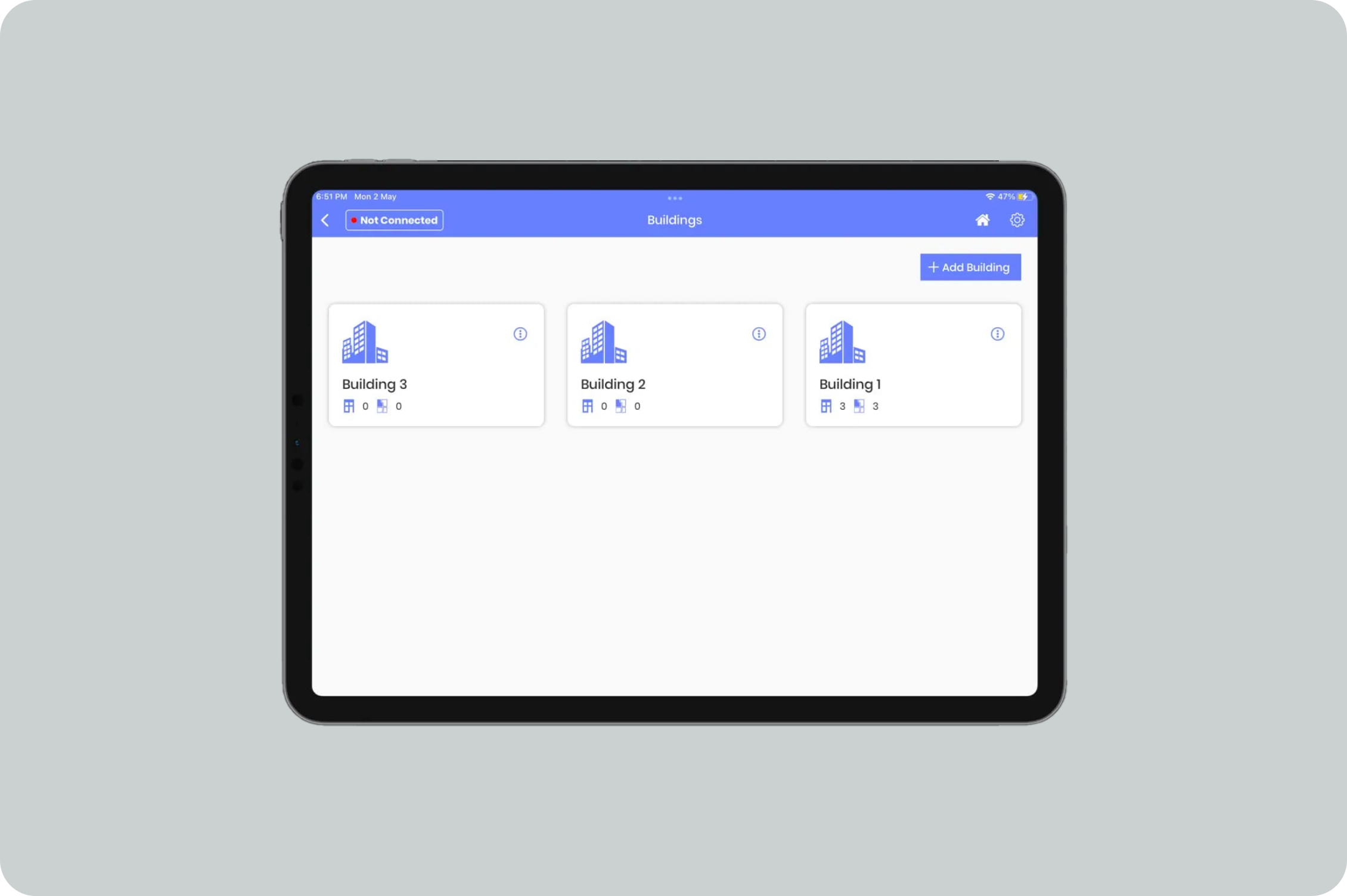

Nodility App

Fast and easy to use commissioning tool for provisioning Cosmicnode powered wireless lights, sensors and other accessories.

  • Scan and quickly discover all wireless devices
  • Control the Lights and other devices
  • Configure the device settings
  • Software update
  • Cloud Backup for project configuration.

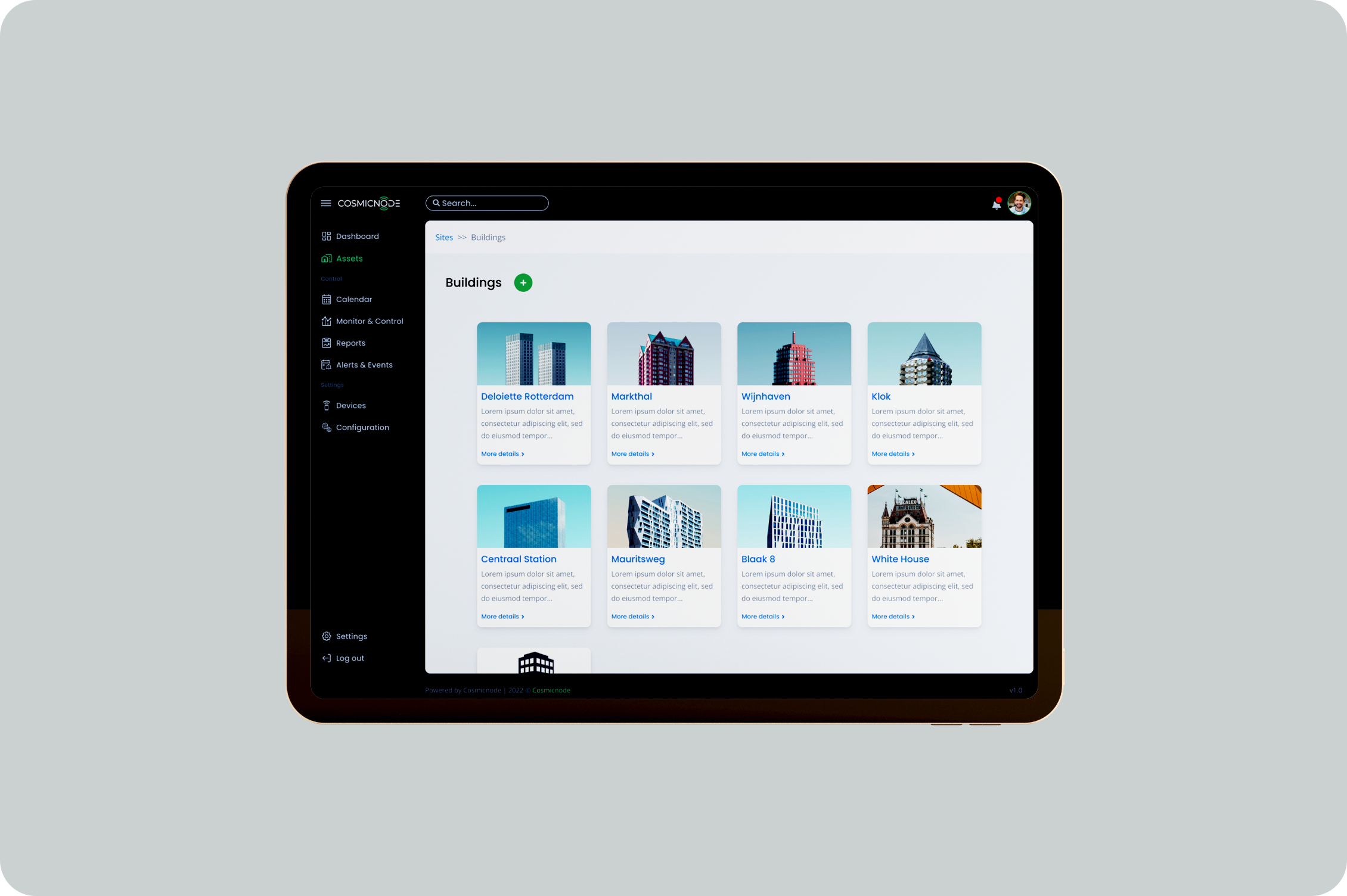

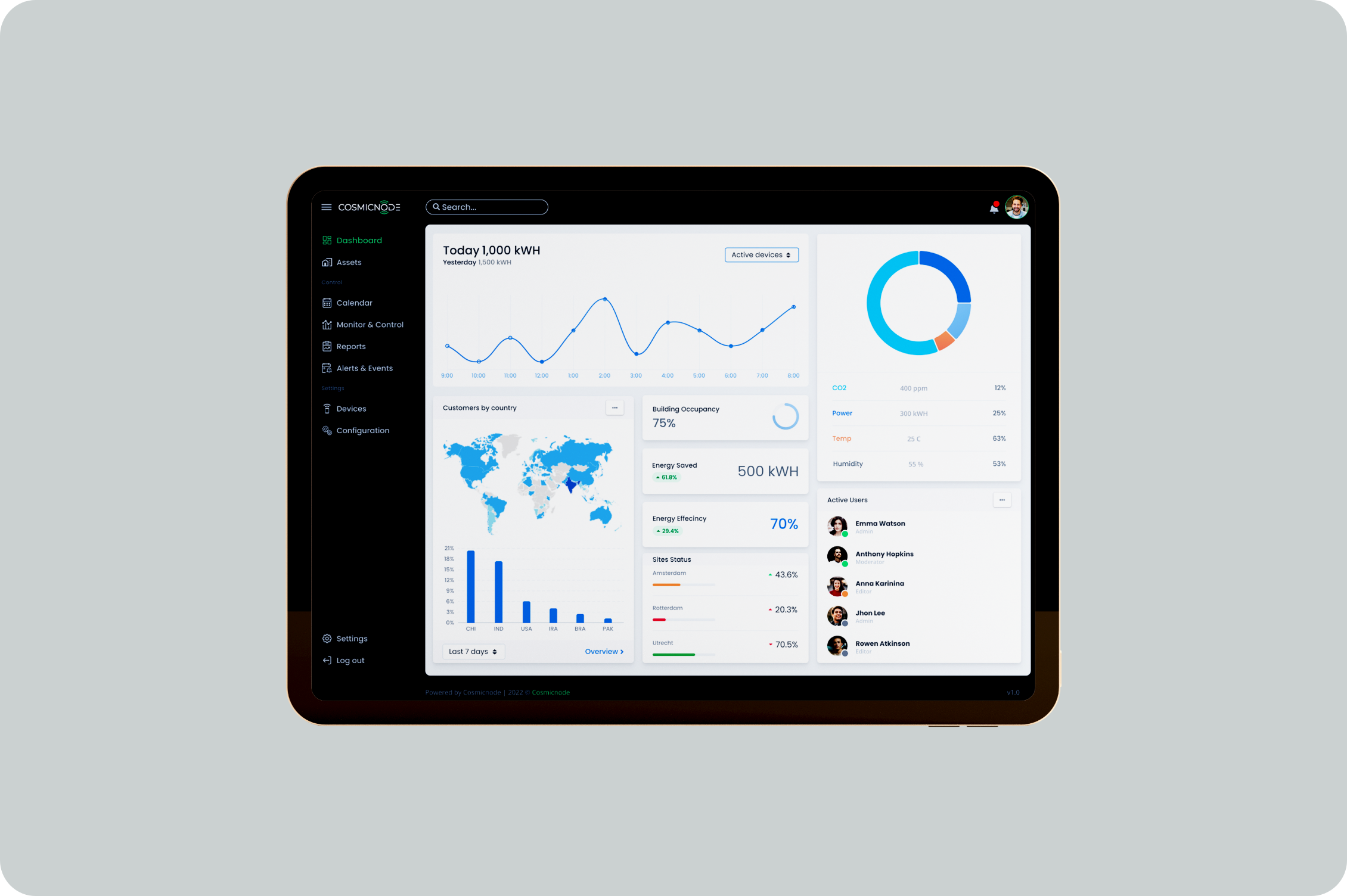

Infinity IoT Platform

Infinity IoT Platform is an enterprise level cloud connected application which helps to connect, control and manage Cosmicnode powered lights and other IoT devices.

  • Multi-Tenant and Multi-Site Asset Management
  • Solution Templates for various industries Office, Retail, Warehouse, Parking and Agri
  • Floor Plan Visualizer tool for plotting and mapping physical assets
  • Configure, Control and Monitor lights, sensors, switches and other physical assets
  • Energy Optimization for lighting and other building services
  • Real time monitoring and alerts for IoT devices
  • Energy, Occupancy and Indoor Air Quality reports
  • Data Collection and Analytics services for space management

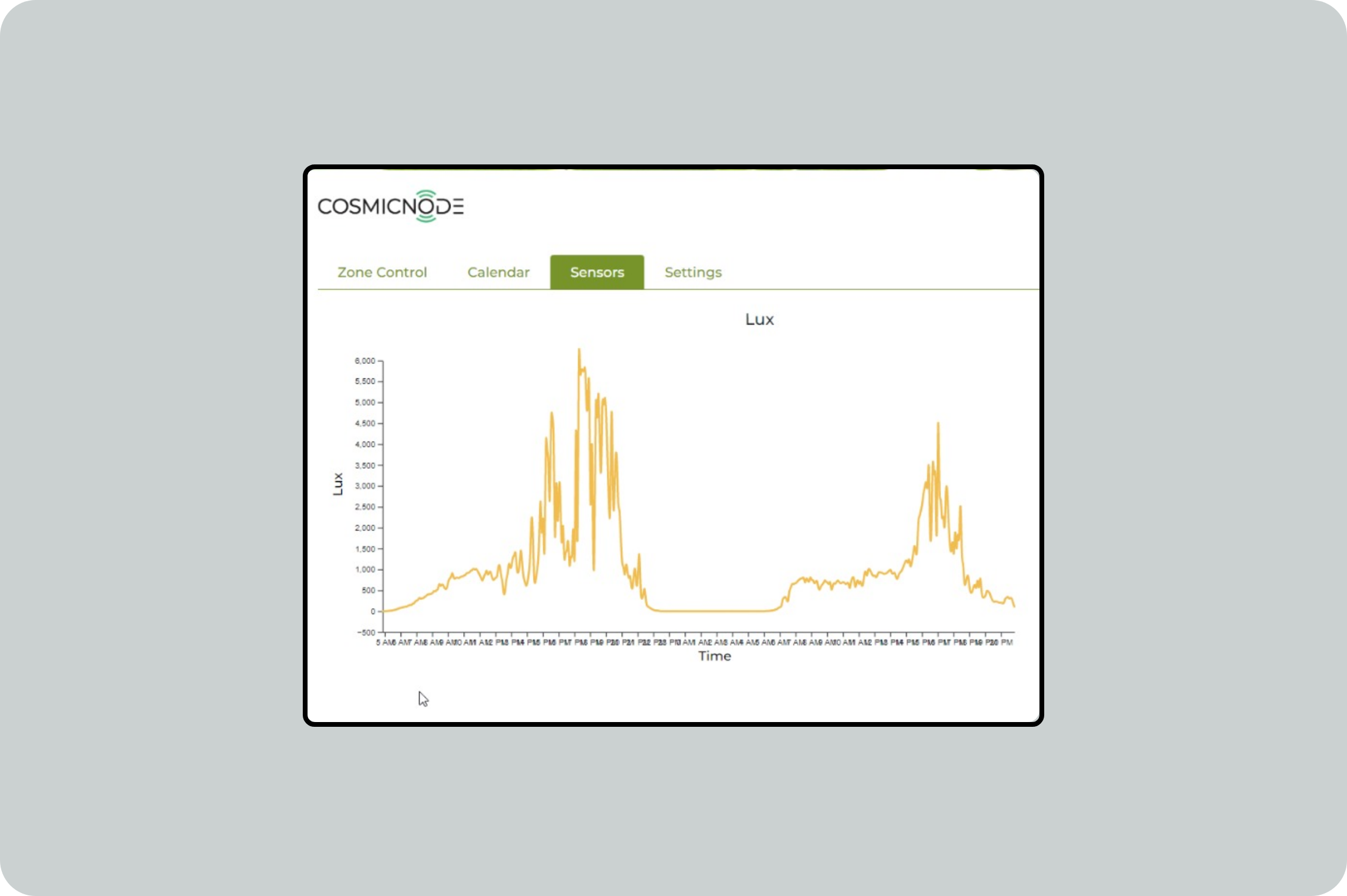

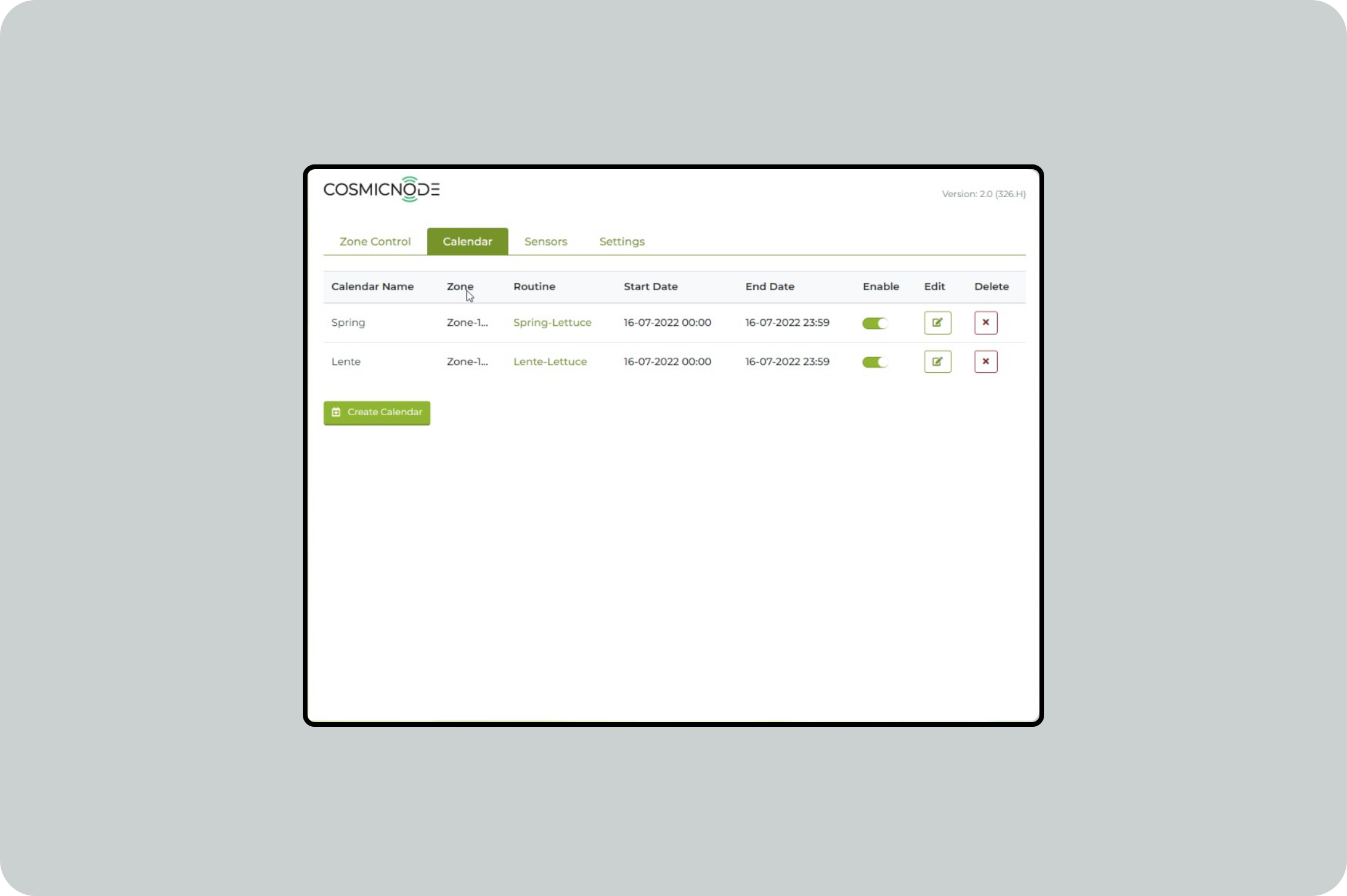

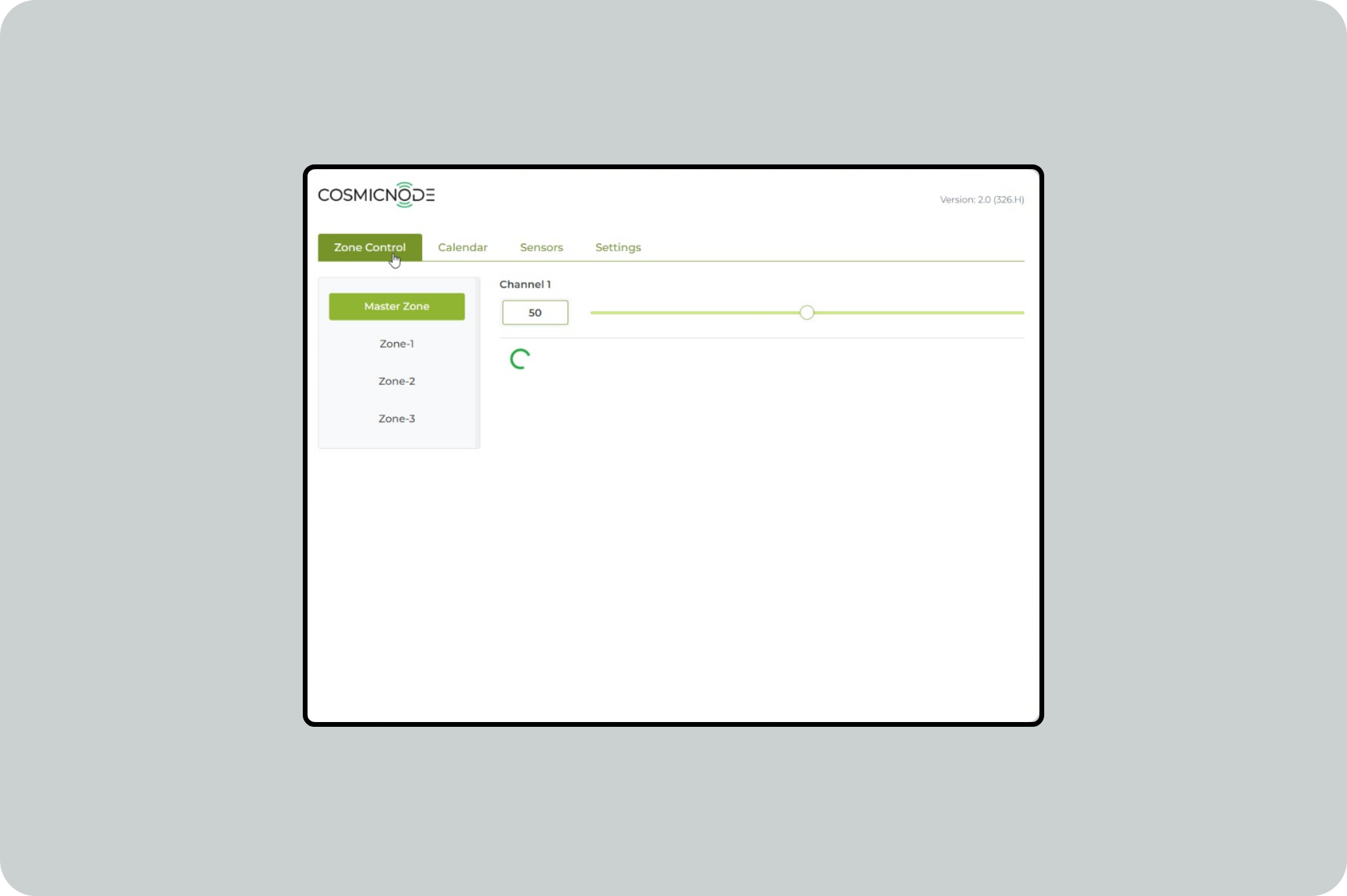

Standalone Gateway Web App

Stand-Alone gateway based web application enable local control of the lighting system without the need for an on-premise PC or cloud application

  • Manage and Control Light Groups
  • Calendar Control
  • Occupancy and Day Light based Light control
  • Light, Temperature and Humidity Reports
  • Control and Monitor API’s for BMS Integration and third party systems

CASE STUDIES

The Work We Do and the People We Help

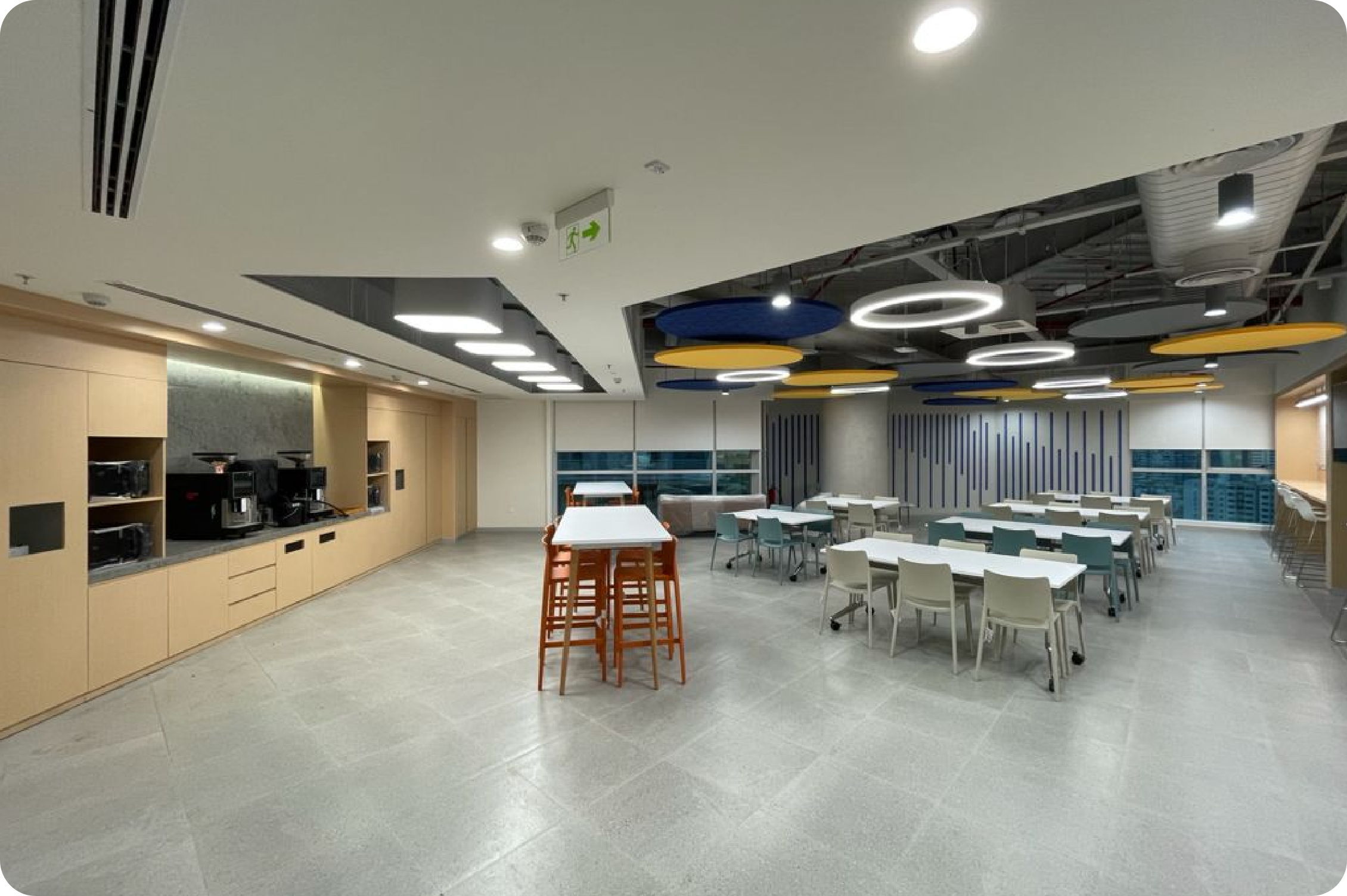

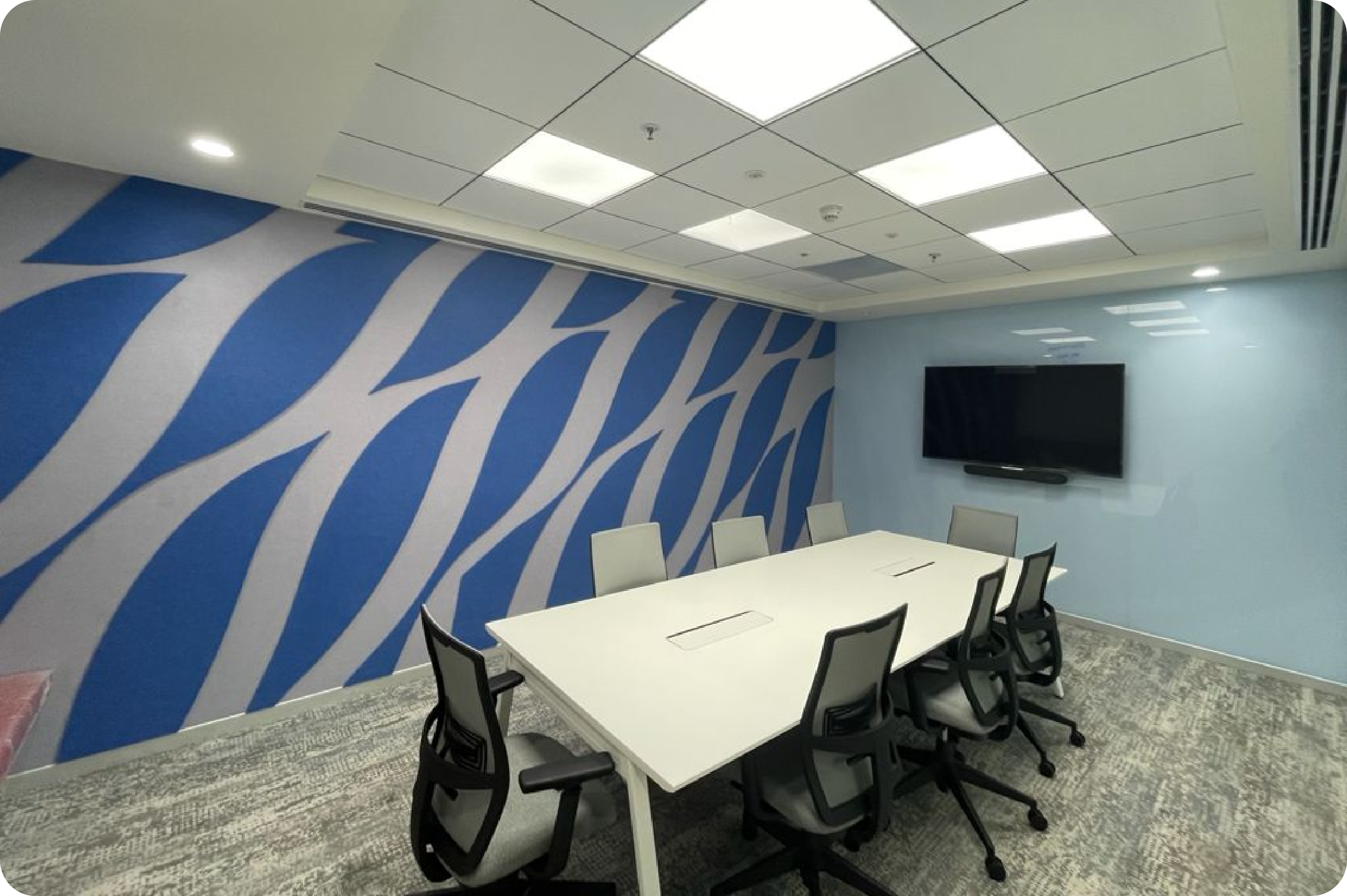

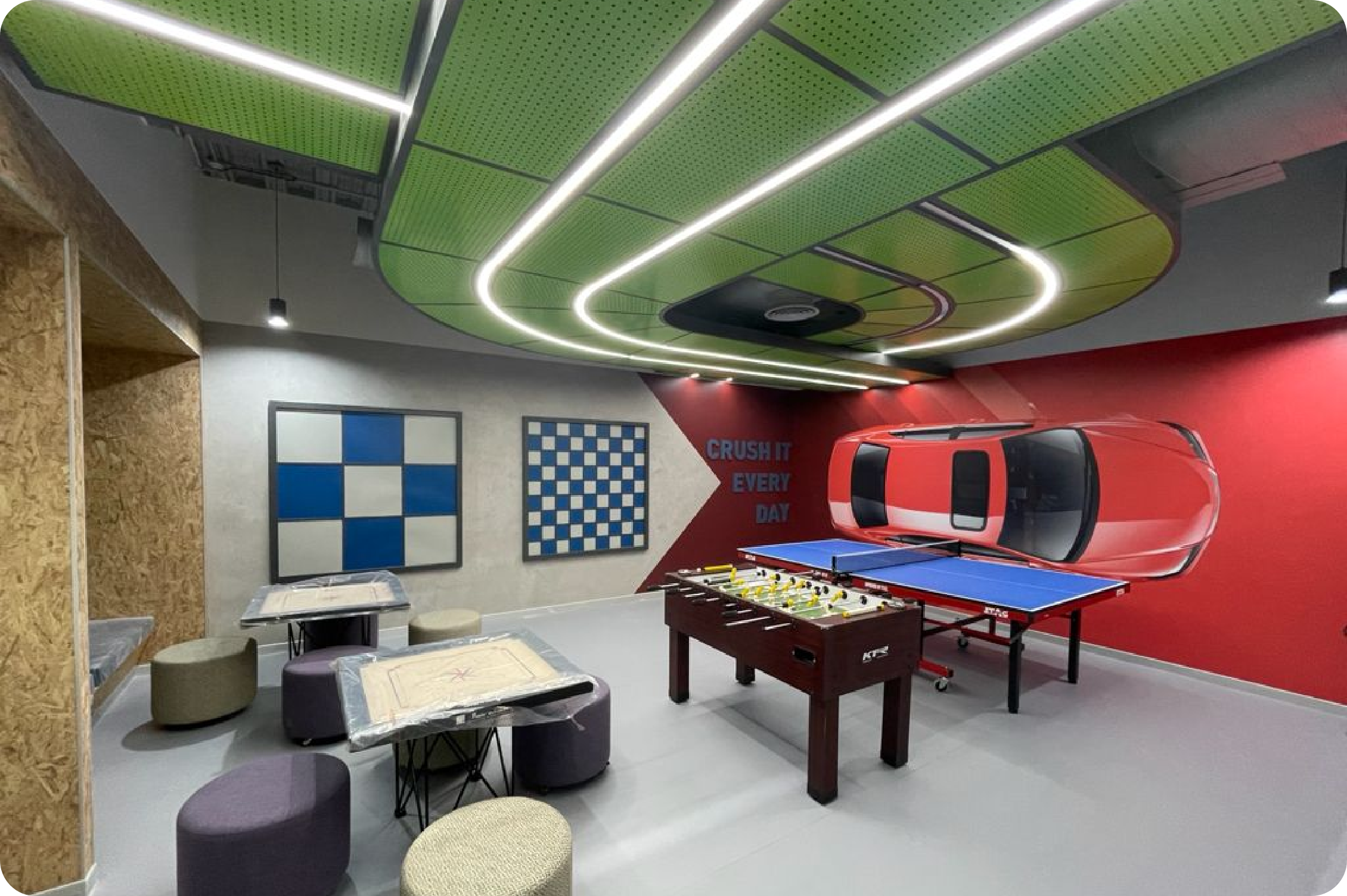

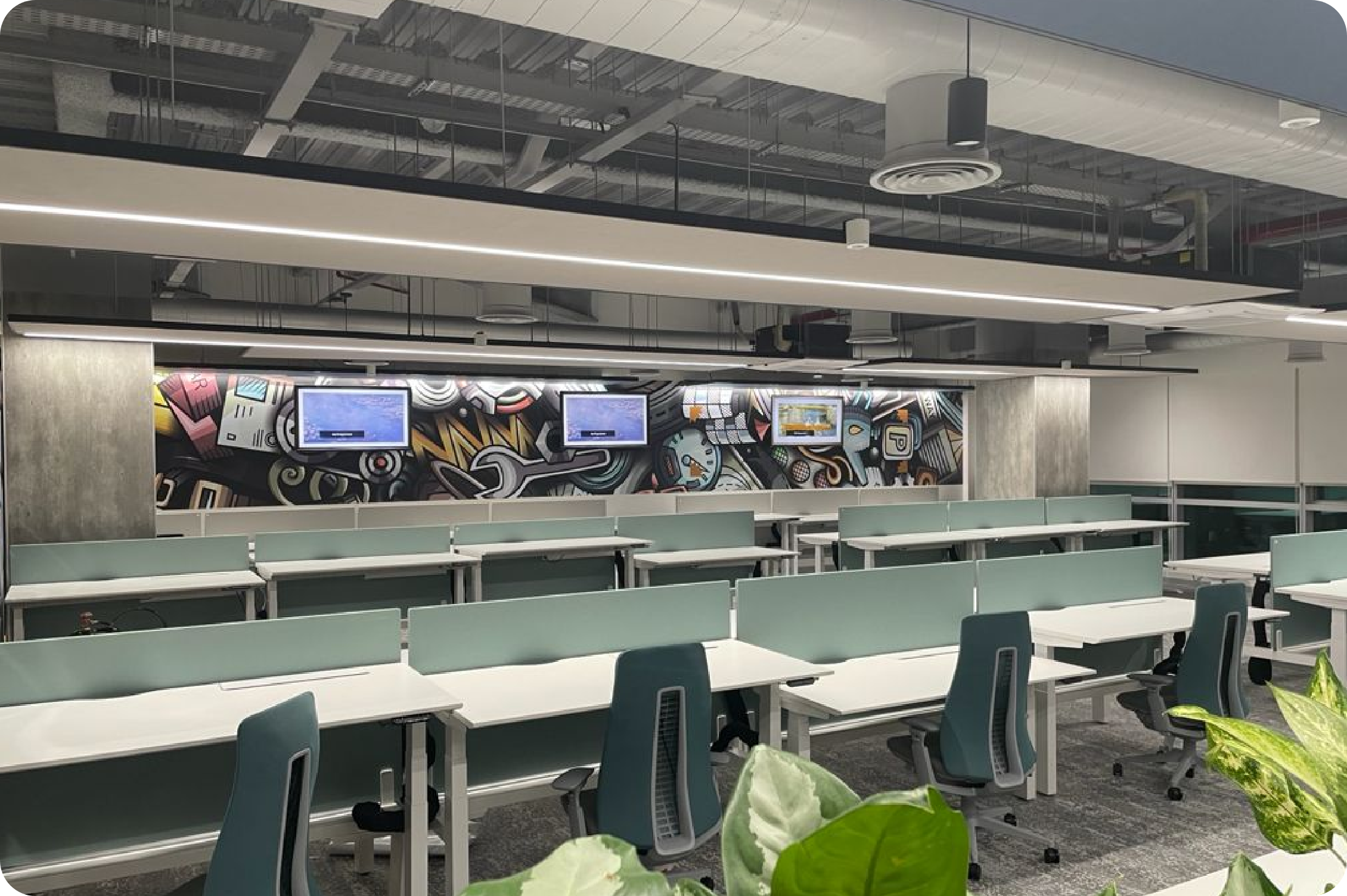

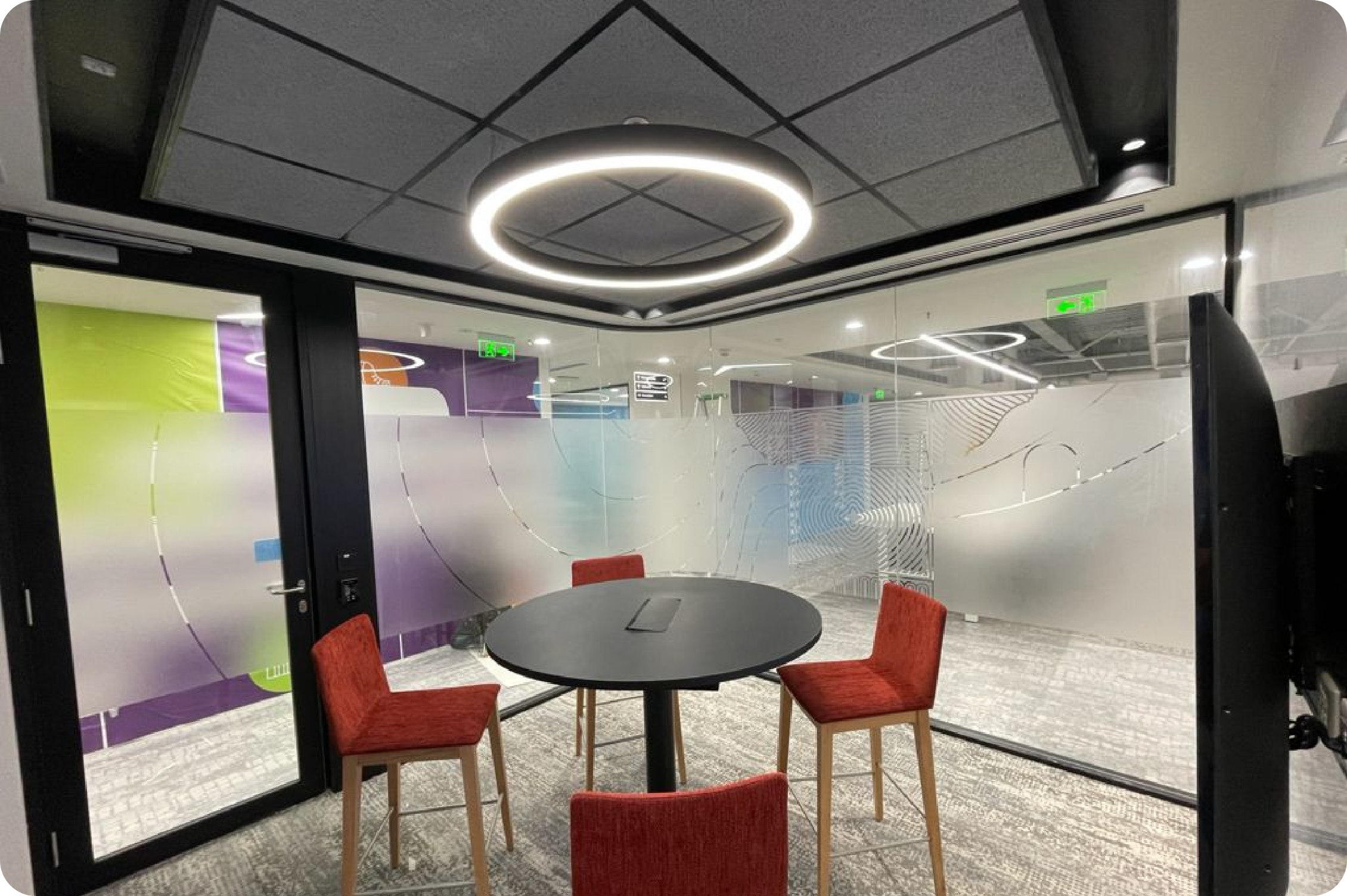

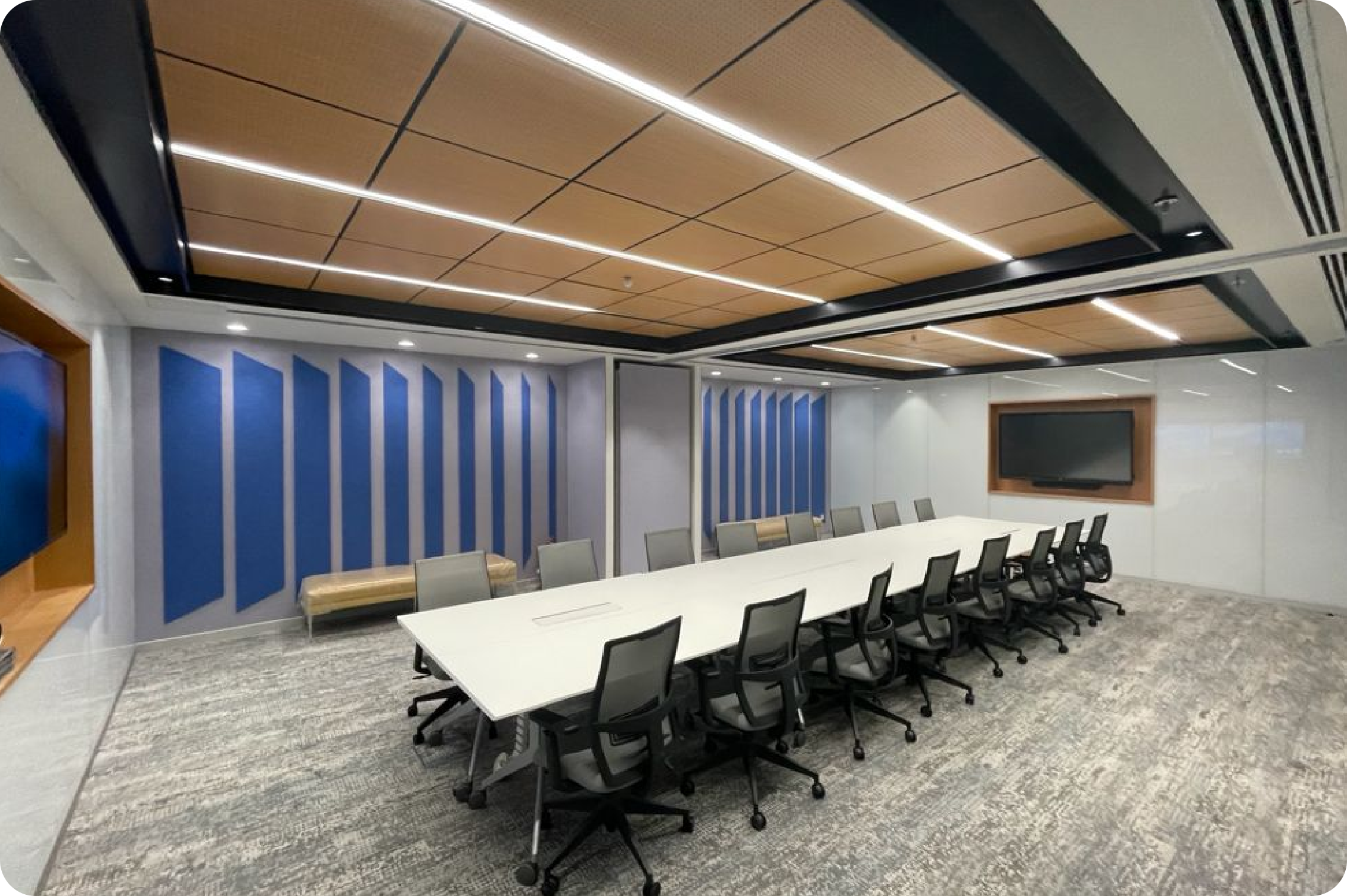

Smart Lighting Solution for Office Space Of a Multinational Company In Bangalore, India

Customer Requirement

  • Standalone smart lighting solution 210 lamps in a single network for an office space of 35,000 square feet
  • Daylight Harvesting
  • Lights should be grouped in specific zones
  • Reduced energy usage
  • Control lamps using a local mobile or web application

15-18% reduction in energy
consumption

Improvement in Employee
Health and Wellness

Helped end customers achieve sustainability goals
- reduction of carbon footprint

Cosmicnode Solution

  • Standalone web application deployed for control and monitor of lamps locally.
  • Onsite and offsite commissioning of lamps using simple and intuitive iPad app.
  • Grouping of lamps into multiple zones like meeting rooms, work desks, and common areas.
  • Our closed-loop system automatically infers the window orientation and the cloudiness levels of the current sky to predict incoming daylight and set the optimal light levels in the office space.
  • Lighting calendars/schedulers configured as per customer requirement.
